Von Duprin 9847EO-F Fire Rated Concealed Vertical Rod Device, For Metal Doors
In Stock
$2,171.64
Price:
$3,497.00
Instant Savings
$1,325.36
Grade 1 Concealed Vertical Rod Device, Exit Only, Less Dogging, Field Reversible
Specifications
Device functions: EO - Exit Only
Device lengths: 3' 2'4' to 3' (711mm to 914mm) Door size - 4' 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor: 39 5⁄8" (1006 mm) Standard
Adjustable from 35 5⁄8" (905mm) to 49 5⁄8" (1260mm)
Center case: 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)

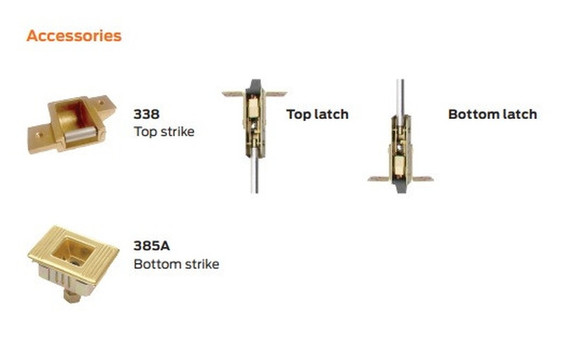

Latch bolt: Deadlocking top and bottom bolt, 5⁄8" (16mm) throw
Door undercut: 1⁄4" (7mm) recommended
Top and bottom latch case: 3 3⁄4" x 1 1⁄2" x 1" (95mm x 38mm x 25mm)
Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm).
Bottom rod adjustable 35 5⁄8" (905mm) to 49 5⁄8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm)
Feature: Features smooth mechanism case
Finishes: 605 - Brights Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626/626AM - Satin Chrome,
628 - Satin Aluminum Clear Anodized, 710 - Dark Bronze Anodized Aluminum,711 - Black Anodized Aluminum
and 643E - 643E - Aged Bronze (619 and 630 available with 98 Series only)
Fasteners and sex bolts: Includes screw pack for 1 3⁄4" (44mm) to 2 1⁄4" (57mm) thick metal doors.
Model: Von Duprin 9847EO-F 3 US28, 9847EO-F 3 26D, 9847EO-F 3 313, 9847EO-F 3 315, 9847EO-F 3 US3, 9847EO-F 3 643E, 9847EO-F 3 32D, 9847EO-F 4 US28, 9847EO-F 4 26D, 9847EO-F 4 313, 9847EO-F 4 315, 9847EO-F 4 US3, 9847EO-F 4 643E, 9847EO-F 4 32D
