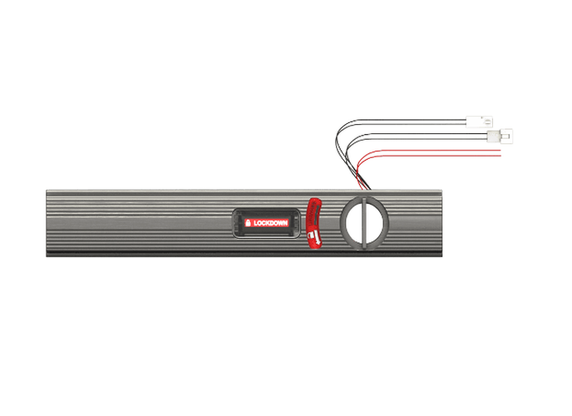

Von Duprin 967242 US32D Emergency Secure Lockdown Kit for Von Duprin 35A QEL 36" Exit Devices, Satin Stainless Steel Finish

Von Duprin 967242 US32D Emergency Secure Lockdown Kit for Von Duprin 35A QEL 36" Exit Devices, Visual Indicator, Red with White Icon and "LOCKDOWN" Text, Satin Stainless Steel Finish, Field Reversible

Emergency secure lockdown (ESL)
The emergency secure lockdown (ESL) option is ideal for high-occupancy spaces, such as auditorium-style classrooms with access control Occupants can turn the thumb turn (or cylinder key) of the ESL option installed, interrupting the power to the QEL motor, and electronically undogging to secure pull side of the door as well as sends a signal to the access control system. The visual indication assures the occupant the exit device has been put into secure lockdown mode.

• No WS
• No mechanical dogging of QEL (SD-QEL, HD-QEL)
• Unit requires a standard 1-1/4" (32mm) mortise cylinder with an inverted straight cam and compression ring and spring. Kit does not come with cylinder or thumbturn, must be ordered separately.

Model: Von Duprin 967242 US32D
