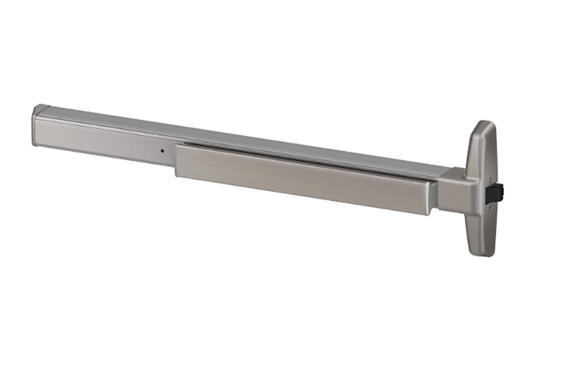

Von Duprin 75EO Rim Panic Device, Exit Only, Narrow Stile Pushpad

Von Duprin 75EO Grade 1 Rim Exit Device, Narrow Stile Pushpad, Exit Only, Hex Key Dogging, Non-Handed

75 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1.

Specification
Device function: EO - Exit Only

Device lengths
3' - 2' 6" to 3' (762mm to 914mm) door size
4' - 3' to 4' (914mm to 1219mm) door size

Device centerline from finished floor: 39-13/16" (1011mm) - 39-11/16" (1008mm) with mullion

Center case: 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)

Mechanism case: 2-5/16" x 2-1/8" (59mm x 54mm)

Projection: Pushbar neutral - 3-13/16" (97 mm) - Pushbar depressed - 3-1/16" (78mm)

Latch bolt: Deadlocking, 5/8" (15.875mm) throw

Finishes: US26D (626), US28 (628), 313 (710), US4 (606), US3 (605), US15 (619), US26 (625), 315 (711), 643E

Pushbar length
3' 18" (457mm)
4' 24" (610mm)

Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors

Electrified Options
Switches
Request to Exit (RX)
• Signals use of an opening
• SPDT switch to monitor pushpad
• 2 A maximum @ 24VDC; below 50 mA @ 24VDC for low current option

Latch Bolt Monitoring (LX)
• Signals use of an opening
• SPDT switch to monitor latch bolt
• 2 A maximum @ 24VDC; below 50 mA @ 24VDC for low current option

Latch Retraction
Quiet Electric Latch Retraction (QEL)
• Bolt retraction via switch
• Converts exit door to push-pull operation
• Voltage: 24VDC
• Current: 1.0 A inrush (0.5 sec.) / 0.14 A holding

Model: Von Duprin 75EO 3 628, 75EO 3 626, 75EO 3 711, 75EO 3 630, 75EO 3 710, 75EO 4 628, 75EO 4 626, 75EO 4 711, 75EO 4 630, 75EO 4 710
