Von Duprin 6113 Electric Strike, for Rim Exit Devices

Von Duprin 6113 Electric Strike, 6" Faceplate, Fire-Rated, For use with Rim Exit Devices on Single Doors, Hollow Metal, Aluminum, or Wood Frame

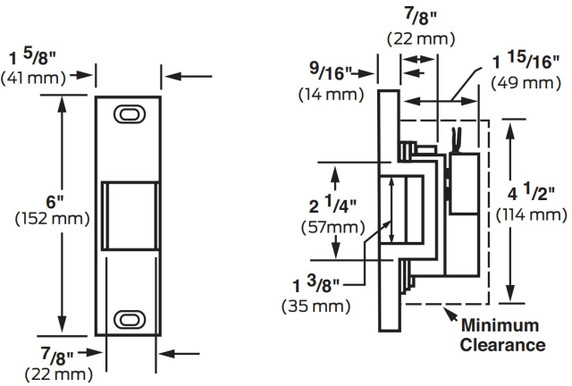

Retrofits model: VD 3011, VD 3021 - Latchbolt throw: 3⁄4" - Face plate length: 6"  - Backbox depth: 1 15⁄16"
Lockset: Rim exit device - Number of doors: Single

Certifications/ Listings: UL 1034, UL 10C Single Door, UL 10C Pair Door

Features and benefits
• Five configurations available for rim exit and nightlatch devices
• Heavy-duty stainless steel construction
• Strike box allows horizontal adjustment to compensate for misalignment of the door or frame
• 24 VDC standard with 12 VDC and AC operation optional
• Two-piece plug connectors are furnished for ease of installation and removal during strike servicing
• Options include rectifier kit for VAC to VDC conversion, dual monitor switches,
entry buzzer and Allegion Connect wire extension
• Six popular finishes available to suite with existing hardware
• UL 10C 3-hour fire-rated electric strike (models 6111, 6112 and 6113 – fail secure only)
• UL 1034 listed for burglary-resistant electric door strikes

Power failure mode:
FSE Fail-secure. Requires power to be applied to unlock the strike lip.
On loss of power, the strike lip is locked. Fire-rated.

FS Fail-safe. Requires power to be applied to lock the strike lip. On loss of power,
the strike lip is unlocked. Non-fire-rated.

Dual switch (optional):
DS - Monitors latch bolt and lock status. DS switches rated for 24 VDC at .050 - 2.0 amps.

DS-LC - Low current option for computer monitoring. Monitors latch bolt & lock status. DS-LS
switches rated for 24 VDC at .050 amp or less.

Model: 6113 12V, 6113 24V, 6113 24V FS, 6113 12V FS, 6113 12V DS-LC, 6113 12V DS, 6113 24V DS-LC, 6113 24V DS
