Von Duprin 55EO Rim Crossbar Exit Device, Exit Only

Von Duprin 55EO Grade 1 Rim Exit Bar, Narrow Stile Crossbar, 48" Device, Exit Only, Less Trim, Hex Key Dogging, Field Reversible

Specifications

55 Rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations. Fits doors stiles as narrow as 1 3/4" (44 mm). Specify for 2 1/4" door. Device is field reversible.

Device functions: EO - Exit Only

Device Length: 48 Inch (4 Foot)

Crossbar height to finished floor: 36 13/16" (935 mm) at center

Lock stile case: 7 1/4" x 1 3/16" x 2 1/4" (184 mm x 30 mm x 57 mm)

Hinge stile case: 7 1/4" x 1 3/16" x 2 1/4" (184 mm x 30 mm x 57 mm)

Crossbar tubing: 1" (25 mm)

Projection: Crossbar neutral – 3 3/4" (95 mm). Crossbar depressed – 2 3/8" (60 mm)

Latch bolt: 3/4" (19 mm), throw

Outside trim: Standard - 379L, 550DT x 110NL-MD, 550DT x 110NL-WD, 550DT

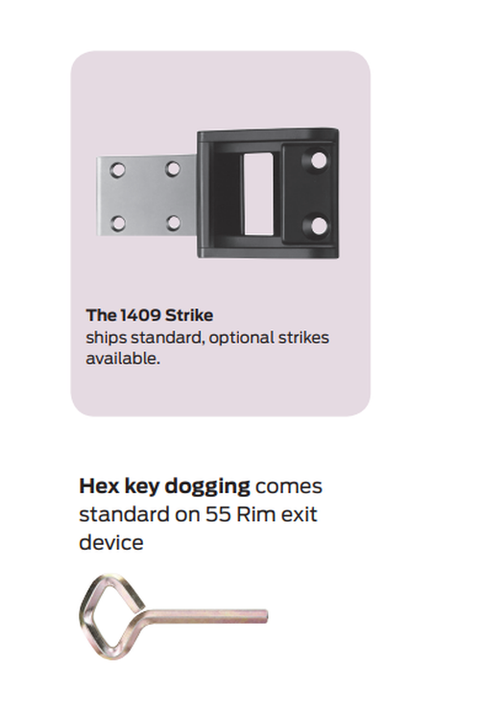

Strikes: 1409 - Dull black

Finishes: US3, US4, US10B, US10, US26, US26D

Fasteners and sex bolts (SNB): Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) thick metal or wood doors. Sex nuts and bolts included.

Model: Von Duprin 55EO 26D, 55EO US4, 55EO US3, 55EO US10B, 55EO SPBLK, 55EO US10
