Von Duprin 5575EO Mortise Crossbar Exit Device, Exit Only

Von Duprin 5575EO Grade 1 Mortise Exit Bar, Narrow Stile Crossbar, 48" Device, Exit Only, Less Trim, Hex Key Dogging, Field Reversible

Specifications

5575 Mortise lock devices for all types of single and double doors. UL listed for accident hazard installations.

The 7500 Mortise lock is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel. Wood doors required 589 cover plate. Specify for 2 1/4" door

Device functions: EO - Exit Only

Device Length: 48 Inch (4 Foot)

Crossbar height to finished floor: 36 13/16" (935 mm) at center

Latch bolt height to finished floor: 40 3/32" (1018 mm) at center

Lock stile case: 7 1/4" x 1 3/16" x 2 1/4" (184 mm x 30 mm x 57 mm)

Lock case: 4 5/8" x 5 3/4" x 1 1/16" (117 mm x 146 mm x 27 mm)

Faceplate: 1 1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm)

Cylinder backset: 2 3/4" (70 mm)

Hinge stile case: 7 1/4" x 1 3/16" x 2 1/4" (184 mm x 30 mm x 57 mm)

Crossbar tubing: 1" (25 mm)

Projection: Crossbar neutral – 3 3/4" (95 mm). Crossbar depressed – 2 3/8" (60 mm)

Latch bolt: Anti-friction, 3/4" (19 mm), throw

Outside trim: Standard - 375L, 550DT

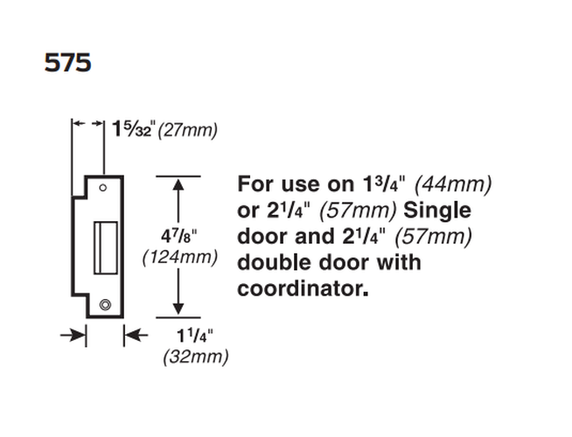

Strikes: 575 - Dull black

Finishes: US3, US4, US10B, US10, US26, US26D

Fasteners and sex bolts (SNB): Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) thick metal or wood doors. Sex nuts and bolts included.

Model: Von Duprin 5575EO 26D, 5575EO US4, 5575EO US3, 5575EO US10B, 5575EO SPBLK, 5575EO US10
