Von Duprin 5547EO-F Fire Rated Concealed Vertical Rod Device, Exit Only

Von Duprin 5547EO-F Grade 1 Concealed Vertical Rod Metal Door Exit Bar, Narrow Stile Crossba, 48" Fire Rated Device, Exit Only, Less Trim, Less Dogging, Field Reversible

Specifications

5547-F Fire exit concealed vertical rod devices for use on 8' x 8' (2438 mm x 2438 mm) double metal doors swinging same direction or double egress. UL listed for up to 3 hour labeled installationsand fits door stiles as narrow as 4 3/4" (121 mm). Standard device fits 6'8" to 8'0" door height.

Double doors swinging same direction using a pair of 5547-F devices must not have an overlapping astragal.

Device functions: EO - Exit Only

Device Length: 48 Inch (4 Foot)

Crossbar height to finished floor: 36 13/16" (935 mm) at center

Lock stile case: 7 1/4" x 1 3/16" x 2 1/4" (184 mm x 30 mm x 57 mm)

Hinge stile case: 7 1/4" x 1 3/16" x 2 1/4" (184 mm x 30 mm x 57 mm)

Vertical rods-hexagon: 3/8" (10 mm) adjustable top rod

Crossbar tubing: 1" (25 mm)

Projection: Crossbar neutral – 3 3/4" (95 mm). Crossbar depressed – 2 3/8" (60 mm)

Latch bolt: 5/8", throw

Outside trim: Hollow metal - 376T x 609DT, 371L

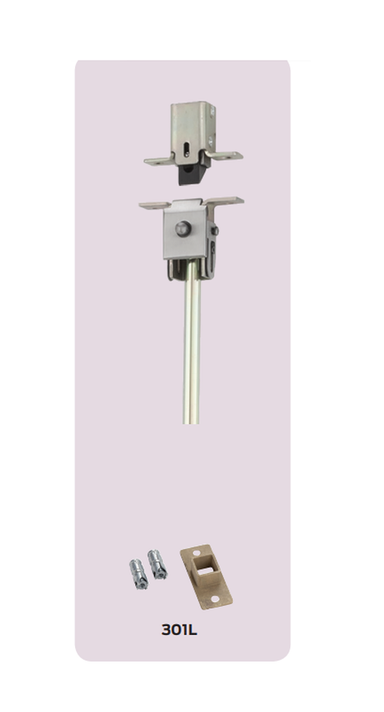

Strikes: 301L - Bottom-unfinished

Finishes: US3, US4, US10B, US10, US26, US26D

Fasteners and sex bolts (SNB): Sex nuts and bolts for mounting are included for 1 3/4" (44 mm) and 2 1/4" (57 mm) thick doors, when specified.

Model: Von Duprin 5547EO-F 26D, 5547EO-F US4, 5547EO-F US3, 5547EO-F US10B, 5547EO-F SPBLK, 5547EO-F US10
