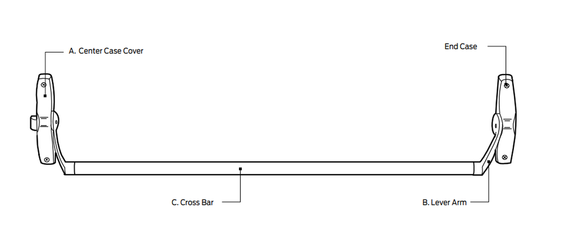

Von Duprin 5547EO Concealed Vertical Rod Device, Exit Only

Von Duprin 5547EO Grade 1 Concealed Vertical Rod Metal Door Exit Bar, Narrow Stile Crossbar, 48" Device, Exit Only, Less Trim, Hex Key Dogging, Field Reversible

Specifications

5547 Concealed vertical rod devices for use on single or double metal doors. UL listed for accident hazard installations and fits door stiles as narrow as 1 3/4" (44 mm). Specify for 2 1/4" door. Standard device fits 6' 8" to 8'0" door height

Device functions: EO - Exit Only

Device Length: 48 Inch (4 Foot)

Crossbar height to finished floor: 36 13/16" (935 mm) at center

Lock stile case: 7 1/4" x 1 3/16" x 2 1/4" (184 mm x 30 mm x 57 mm)

Hinge stile case: 7 1/4" x 1 3/16" x 2 1/4" (184 mm x 30 mm x 57 mm)

Vertical rodshexagon: 3/8" (10 mm) adjustable top rod

Crossbar tubing: 1" (25 mm)

Projection: Crossbar neutral – 3 3/4" (95 mm). Crossbar depressed – 2 3/8" (60 mm)

Latch bolt: 3/4" (19 mm), throw

Outside trim: Hollow metal - 555NL, 550DT, 376 L, 376T x 550DT

Strikes:
471U - Top-unfinished
304L - Bottom-unfinished

Wood frame strikes: 472U for 1 3/4" door and 473U for 2 1/2" door.

Finishes: US3, US4, US10B, US10, US26, US26D

Fasteners and sex bolts (SNB): Sex nuts and bolts for mounting are included for 1 3/4" (44 mm) and 2 1/4" (57 mm) thick doors, when specified.

Model: Von Duprin 5547EO 26D, 5547EO US4, 5547EO US3, 5547EO US10B, 5547EO SPBLK, 5547EO US10
