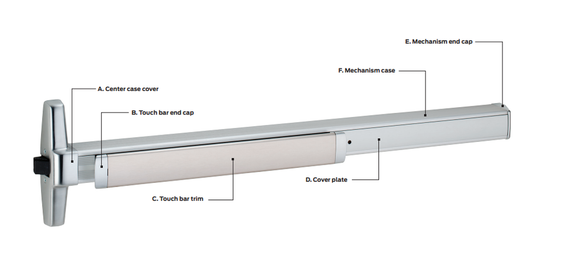

Von Duprin 3547ADT Concealed Vertical Rod Exit Device with 386DT Trim

Von Duprin 3547ADT Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, Dummy Trim, Escutcheon Pull, Hex Key Dogging

3547A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm). Newly designed device has a one piece center case cover.

Trim function: Dummy trim - Pull when dogged

Trim Cylinder Type: 1-1/4" Mortise (Cylinder sold separately)

Specifications

Device lengths
3' 2'4' to 3' (711mm to 914mm) Door size
4' 2'10" to 4' (864mm to 1219mm) Door size

Device centerline from finished floor: 39 13⁄16" (1006mm)

Center case: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)

Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Projection: Pushbar neutral – 3 13/16" (97mm) Pushbar depressed – 3 1/16" (78mm)

Latch bolt: Deadlocking anti-friction top and bottom bolt 5/8" (16mm) throw

Door undercut: 1⁄4" (7mm)

Top and bottom latch case: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm)

Vertical rods:
Round 2 piece adjustable rods
Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm)
Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
Extension rod kits available for doors over 8'4" (2533mm)

Finishes: 605, 606, 612, 619 (35A only), 625, 626, 626AM, 628, 710, 711

Fasteners and sex bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors
#425 SNB furnished standard for end case
#325 SNB furnished standard for EO (exit only device)

Electrified Options
Quiet electric latch retraction (QEL)
Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments where limited operational noise is desired. These devices always provide mechanical egress. The electrified latch retraction can also be activated by an access system or building automation system to unlatch the exit device momentarily. Often the QEL is used with a credential reader and access control system to unlock the door momentarily for authorized users.

The QEL can also be configured to electronically retract the latch for an extended period of time to allow free entry. This is a convenient alternative to mechanical dogging.

The QEL option is available on panic devices and fire rated devices. UL approved for Class II circuit applications. The QEL option does not include the power transfer from door to frame, the power supply, or the control operator. The QEL has a low in rush current, so it can be used with standard Schlage power supplies. Calculate the peak current draw of all devices in the system to determine the required amperage of the supply.

QEL Electrical load
Voltage: 24VDC
Current: 1.0 A Inrush (0.5 sec.) / 0.14 A Holding / 2.0 A Calibrate (3 sec. one time)

Electric latch retraction (EL)
The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation. A powerful, continuous duty solenoid retracts the latch bolt, either for momentary unlatching, or for extended periods of time. The EL feature is an alternative to manual dogging.

EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system. UL approved for Class II circuit applications. The EL option does not include the power transfer from door to frame, the power supply, or the control operator.

Solenoid specifications:
Continuous duty – 24 VDC
Current inrush – 16 amps
Current holding – 0.3 amps

Solenoid resistance:
-grn-yel 1.2 – 2.2 OHMS
-grn-org 100 – 150 OHMS

Switches
Request to exit (RX)
The RX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch which monitors the pushpad. The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply. A continuous current electrictransfer must be used for transferring power from the frame to the door.

The RX switch option should not be used to control a load, but as a signalling switch (0.5 amps. resistive maximum). The RX switch is available in a low current (LC) switch. Most commonly used in computer operated monitoring systems.

Double request to exit (RX2)
The RX2 feature uses two RX switches.

Latch bolt monitoring (LX)
The LX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch which monitors the latch bolt. The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply. A continuous current electric transfer must be used for transferring power from the frame to the door. The LX switch option should not be used to control a load, but as a signalling switch (0.5 amps. resistive maximum).

The LX switch is available in a low current (LC) switch. Most commonly used in computer operated monitoring systems.

Electrical rating for all switches
1. Standard – 2 amp maximum @ 24VDC
2. Low Current (LC) - below 50 Milliamps @ 24VDC

Model: Von Duprin 3547ADT 26D, 3547ADT US28, 3547ADT US3, 3547ADT 313, 3547ADT 315, 3547ADT US4, 3547ADT US26
