Von Duprin 22L-06-F Fire Rated Rim Panic Exit Device, With 230L Lever

Grade 1 Fire Rated Rim Exit Device, Wide Stile Pushpad, Classroom Function, Lever with Escutcheon, Less Dogging, Non-Handed

Specifications

Device functions: L - Lever, Key locks and unlocks

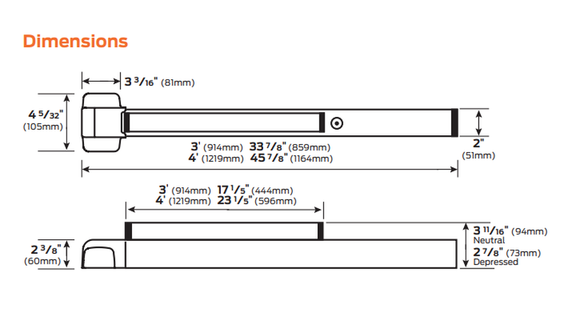

Device lengths: 3' (914 mm) - 4' (1219 mm)

Device centerline from finished floor: 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion

Center case: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)

Mechanism case: 2" (51 mm) x 2 3/8" (60 mm)

Projection: Pushbar neutral – 3 11/16" (94mm) Pushbar depressed – 2 7/8" (73mm)

Latch bolt: Deadlocking, 3⁄4" (19mm) throw

Finishes: 526, 622, 689, 695

Fasteners: Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors.

22-F Rim fire exit devices for all types of single doors up to 4' x 8' (1219 mm x 2438 mm) or 8' x 8'
(2438 mm x 2438 mm) double doors with 9954 or 9854 mullion, UL listed for fire exit hardware. Devices
are ANSI A156.3 – 2014 Grade 1. Fits door stiles as narrow as 4 3⁄8" (111 mm). The device is non-handed.

Model: Von Duprin 22L-06-F 3 689, 22L-06-F 4 689, 22L-06-F 3 695, 22L-06-F 4 695, 22L-06-F 3 622, 22L-06-F 4 622
