Von Duprin 22K Rim Panic Exit Device, with 210K Knob

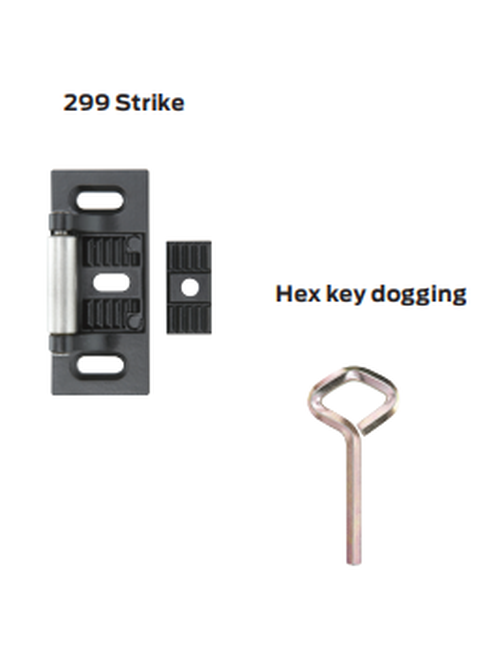

Grade 1 Rim Exit Device, Wide Stile Pushpad, Classroom Function, Knob with Escutcheon, Hex Key Dogging, Non-Handed

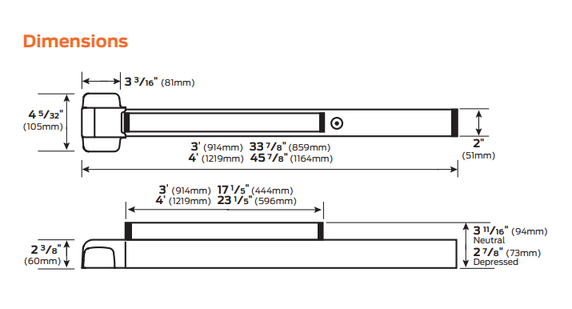

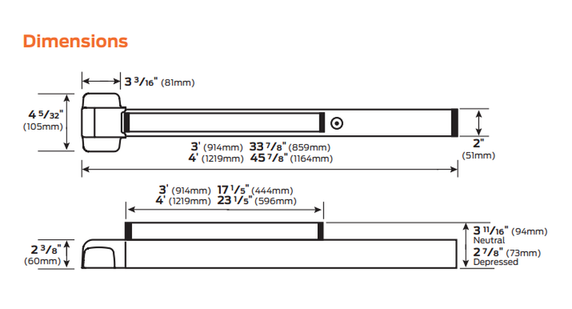

Specifications

Device functions:  K - Knob, Key locks and unlocks

Device lengths: 3' (914 mm) - 4' (1219 mm)

Device centerline from finished floor: 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion

Center case: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)

Mechanism case: 2" (51 mm) x 2 3/8" (60 mm)

Projection: Pushbar neutral – 3 11/16" (94mm) Pushbar depressed – 2 7/8" (73mm)

Latch bolt: Deadlocking, 3⁄4" (19mm) throw

Finishes: 526, 622, 689, 695

Fasteners: Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors.

Model: Von Duprin 22K 3 689, 22K 4 689, 22K 3 695, 22K 4 695, 22K 3 622, 22K 4 622
