Von Duprin 2227L-06-F Fire Rated Surface Vertical Rod Exit Device, With 230L Lever

Grade 1 Surface Vertical Rod Exit Bar, 06 Lever Function, Wing/Finger Pull, Less Dogging, Field Reversible

Specifications

Device functions: L - Lever, Key locks and unlocks

Device lengths: 3' (914 mm) - 4' (1219 mm)

Device centerline from finished floor: 39 13⁄16" (1011mm)

Center case: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)

Mechanism case: 2" (51 mm) x 2 3/8" (60 mm)

Projection: Push bar neutral - 3 11/16" (94 mm) push bar depressed - 2 7/8" (73 mm)

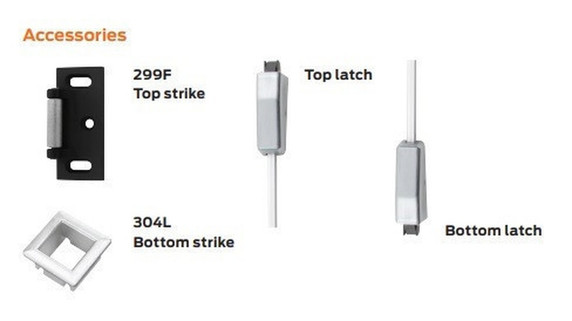

Latch bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16 mm) throw

Finishes: 526, 622, 689, 695

Fasteners: Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) wood and metal doors.

22-F Rim fire exit devices for all types of single doors up to 4' x 8' (1219 mm x 2438 mm) or 8' x 8' (2438 mm x 2438 mm)
double doors with 9954 or 9854 mullion, UL listed for fire exit hardware.

Devices are ANSI A156.3 – 2014 Grade 1. Fits door stiles as narrow as 4 3⁄8" (111 mm).

The device is non-handed.

Model: Von Duprin 2227L-06-F 3 689, 2227L-06-F 4 689, 2227L-06-F 3 695, 2227L-06-F 4 695, 2227L-06-F 3 622, 2227L-06-F 4 622
