Von Duprin 2227EO-F Fire Rated Surface Vertical Rod Exit Device
In Stock
$756.83
Price:
$1,456.00
Instant Savings
$699.17
Grade 1 Surface Vertical Rod Exit Bar, Exit Only, Less Dogging, Field Reversible

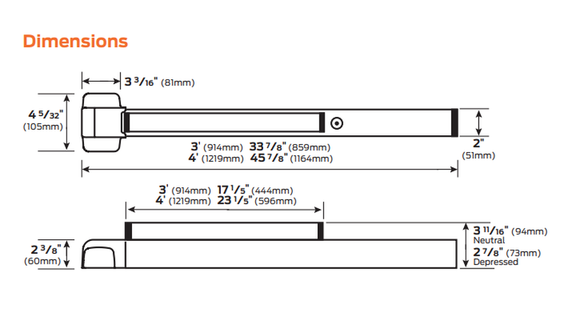

Specifications
Device functions: EO - Exit Only
Device lengths: 3' (914 mm) - 4' (1219 mm)
Device centerline from finished floor: 39 13⁄16" (1011mm)
Center case: 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)
Mechanism case: 2" (51 mm) x 2 3/8" (60 mm)
Projection: Push bar neutral - 3 11/16" (94 mm) push bar depressed - 2 7/8" (73 mm)
Latch bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8" (16 mm) throw
Finishes: 526, 622, 689, 695
Fasteners: Includes screw pack for 1 3/4" (44 mm) and 2 1/4" (57 mm) wood and metal doors.
22-F Rim fire exit devices for all types of single doors up to 4' x 8' (1219 mm x 2438 mm) or 8' x 8' (2438 mm x 2438 mm)
double doors with 9954 or 9854 mullion, UL listed for fire exit hardware.
Devices are ANSI A156.3 – 2014 Grade 1. Fits door stiles as narrow as 4 3⁄8" (111 mm).
The device is non-handed.
