Stanley QCL170 M 626 Heavy Duty Storeroom Cylindrical Lock, Summit Lever, Satin Chrome Finish

Stanley QCL170 M 626 Heavy Duty Storeroom Cylindrical Lock, Summit Lever, Satin Chrome Finish

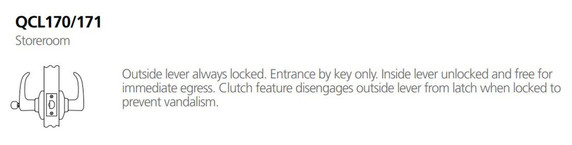

Function: QCL170 Storeroom - ANSI F86
• Outside lever always locked. Entrance by key only. Inside lever unlocked and free for
immediate egress. Clutch feature disengages outside lever from latch when locked to prevent vandalism.

Lever Style: M - Summit

Exposed trim: pressure cast zinc, plated to match finish designation

Standard door thickness: 1 3/8” (35mm) – 2” (51mm)

Backset: 2 3/4” (70mm) square standard;

Strike: ANSI strike 1 1/4” (32mm) x 4 7/8” (124mm) standard;

Door prep: 2 1/8” (54mm) diameter cross bore

Latch bolt: keyed/exterior 1/2” (12.7mm) steel throw; interior 1/2” (12.7mm) spring latch;

Latch faceplate: 1 1/8” (29mm) x 2 1/4” (57mm) standard

Single dummy: surface mounted

Two keys per lockset

Warranties: Lifetime mechanical Three-year finish (613 carries no finish warranty) One-year electrical

Certifications:
ANSI/BHMA A156.2 Series—Grade 1
ANSI A117.1 Accessibility Code (ADA compliant)
UL/cUL listed (3 hour) for “A” label single door applications (4’ by 8’)
UL10C/UBC 7-2 (1997) positive pressure rated
UL10B pressure rated
California State Reference Code (formerly Title 19 – Fire Marshal)
Hurricane Compliant – Miami DADA N.O.A

Model: Stanley QCL170 M 626
