Stanley QCL160 M 626 Heavy Duty Classroom Cylindrical Lock, Summit Lever, Satin Chrome Finish

Stanley QCL160 M 626 Heavy Duty Classroom Cylindrical Lock, Summit Lever, Satin Chrome Finish

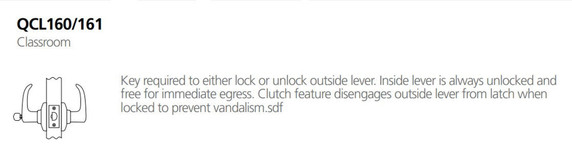

Function: QCL160 Classroom - ANSI F84
• Key required to either lock or unlock outside lever. Inside lever is always unlocked and
free for immediate egress. Clutch feature disengages outside lever from latch when locked to prevent vandalism

Lever Style: M - Summit

Exposed trim: pressure cast zinc, plated to match finish designation

Standard door thickness: 1 3/8” (35mm) – 2” (51mm)

Backset: 2 3/4” (70mm) square standard;

Strike: ANSI strike 1 1/4” (32mm) x 4 7/8” (124mm) standard;

Door prep: 2 1/8” (54mm) diameter cross bore

Latch bolt: keyed/exterior 1/2” (12.7mm) steel throw; interior 1/2” (12.7mm) spring latch;

Latch faceplate: 1 1/8” (29mm) x 2 1/4” (57mm) standard

Single dummy: surface mounted

Two keys per lockset

Warranties: Lifetime mechanical Three-year finish (613 carries no finish warranty) One-year electrical

Certifications:
ANSI/BHMA A156.2 Series—Grade 1
ANSI A117.1 Accessibility Code (ADA compliant)
UL/cUL listed (3 hour) for “A” label single door applications (4’ by 8’)
UL10C/UBC 7-2 (1997) positive pressure rated
UL10B pressure rated
California State Reference Code (formerly Title 19 – Fire Marshal)
Hurricane Compliant – Miami DADA N.O.A

Model: Stanley QCL160 M 626
