Stanley QCL140 E Heavy Duty Privacy Cylindrical Lock, Sierra Lever

Stanley QCL140 E Heavy Duty Privacy Cylindrical Lock, Sierra Lever

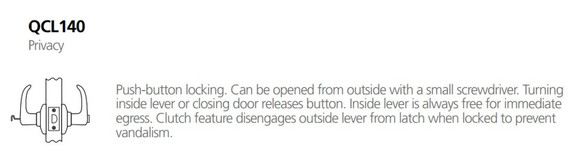

Function: QCL140 Privacy - ANSI F76
• Push-button locking. Can be opened from outside with a small screwdriver. Turning
inside lever or closing door releases button. Inside lever is always free for immediate
egress. Clutch feature disengages outside lever from latch when locked to prevent vandalism.

Lever Style: E - Sierra

Exposed trim: pressure cast zinc, plated to match finish designation

Standard door thickness: 1 3/8” (35mm) – 2” (51mm)

Backset: 2 3/4” (70mm) square standard;

Strike: ANSI strike 1 1/4” (32mm) x 4 7/8” (124mm) standard;

Door prep: 2 1/8” (54mm) diameter cross bore

Latch bolt: keyed/exterior 1/2” (12.7mm) steel throw; interior 1/2” (12.7mm) spring latch;

Latch faceplate: 1 1/8” (29mm) x 2 1/4” (57mm) standard

Single dummy: surface mounted

Two keys per lockset

Warranties: Lifetime mechanical Three-year finish (613 carries no finish warranty) One-year electrical

Certifications:
ANSI/BHMA A156.2 Series—Grade 1
ANSI A117.1 Accessibility Code (ADA compliant)
UL/cUL listed (3 hour) for “A” label single door applications (4’ by 8’)
UL10C/UBC 7-2 (1997) positive pressure rated
UL10B pressure rated
California State Reference Code (formerly Title 19 – Fire Marshal)
Hurricane Compliant – Miami DADA N.O.A

Model: Stanley QCL140 E 626
