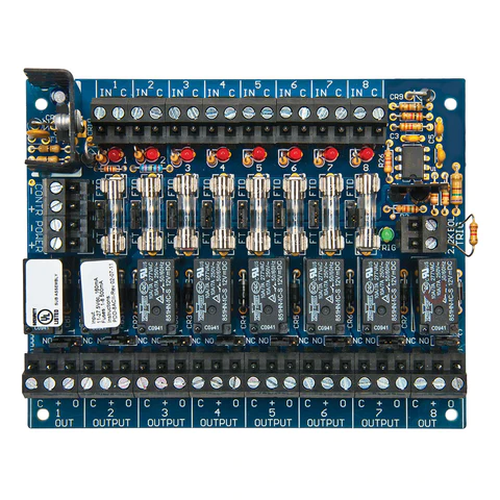

Securitron PDB-8F8R Power Distribution Board, 8 Glass Fused Outputs w/ Relays, Fire Trigger

Securitron PDB-8F8R Power Distribution Board, 8 Glass Fused Outputs with Relays, Fire Trigger

Works with AQD and AQS power supplies. Creates multiple outputs for separate circuits. Power Distribution Boards split the primary AC or DC output from a power supply into multiple outputs of the same voltage type to separate equipment onto individual circuits.

PDB-8F8R Power Distribution for Access Control with Fire Interface module Controls and Distributes Power with 8 Control Relays with an EOL Fire trigger Interface Power Interface for Access Control, CCTV, Fire, and general low voltage system control.

Features
• Splits main board output into multiple outputs
• Each output has a status LED indicator
• Main input has a status LED indicator
• 12 V or 24 V output (based on power supply output)
• Accepts AC or DC input/ provides same output
• PDB-8 has a main power indicator that indicates AC, DC or reverse DC input
• Individually fused with 1 Amp or 2 Amp options available
• PTC variants provide class 2 power limited outputs
• Separate fuse for main input surge protection–standard automotive ATO sizes
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Specifications
Electrical
• PDB-4F, PDB-8F
− Fuses for individual outputs are standard 3 AGC
− Accepts AC or DC input

Dimensions
• PDB-8 Board 4-7/8"H x 4-7/8"W x 1"D [124mm H x 124mm W x 25mm D]
• Mounting 3-7/16" H x 4-1/2" W [87mm H x 124mm W]

Fuse Size
• 1 Amp
• 2 Amp

Certifications
• UL 294 Listed
• UL 603 Listed
• ULC-S318 Listed
• ULC-S533 Listed

Model: Securitron PDB-8F8R
