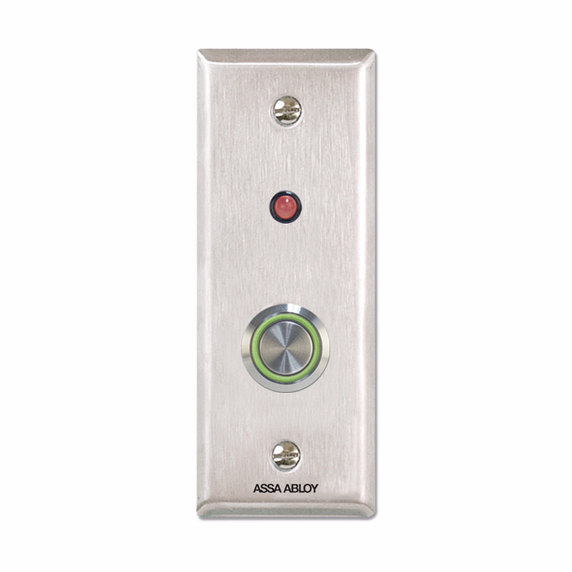

Securitron PB4LN-2 1/2" Stainless Steel Pushbutton w/ LED, Momentary, DPDT, Narrow Stile

Securitron PB4LN-2 1/2" Stainless Steel Pushbutton with LED, Momentary, DPDT, Narrow Stile

Stainless push button with illuminated halo. High quality Securitron Push Buttons are available in a broad selection of colors, sizes, switch types and outputs. With a wide range of options for interchangeable lenses and field convertible outputs, Securitron push buttons can release any lock, alone or in conjunction with door closers and other hardware.

PB4LN-2 - 1/2” Round Button, Green Illuminated Halo, Momentary, DPDT, Narrow Stile, Green/Red LED

Features
• Illuminated green halo-style button
• Bi-color LED
• Tamper resistant
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Specifications
Electrical
• 20 mA at 12 VDC
• 40 mA at 24 VDC
• 4 A rated contacts

Dimensions
• Stainless steel narrow stile plate: 4-1/2" x 1-3/4" [114mm x 44mm]

Application: Door Closers; Other Hardware

Switch Type: Momentary

Contact Type: DPDT - Double Pole, Double Throw

Button Size: 1/2 Inch

Product Height: 4-1/2 Inch

Product Width: 1-3/4 Inch

Model: Securitron PB4LN-2
