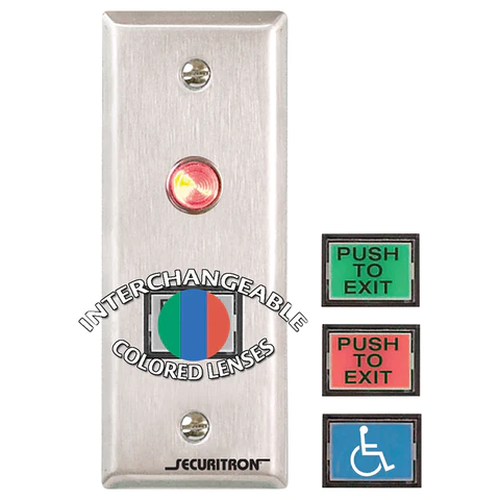

Securitron PB3N 1" x 3/4" Illuminated "Push to Exit" Button, Momentary Contact, Narrow Stile

Securitron PB3N 1" x 3/4" Illuminated "Push to Exit" Button, Momentary Contact, Narrow Stile

High quality Push Buttons are available in a broad selection of colors, sizes, switch types and outputs. With a wide range of options for interchangeable lenses and field convertible outputs, push buttons can release any lock, alone or in conjunction with door closers and other hardware.

PB3N - 3/4” Rectangle Button, Illuminated, Momentary, DPST/DPDT, Narrow, Green/Red Lens

Features
• Includes interchangeable green and red lenses
• Field convertible from DPST to DPDT
• Field selectable 12/24VDC
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Specifications
Electrical
• 29 mA at 12 VDC
• 40 mA at 24 VDC
• 3 A rated contacts

Dimensions
• Stainless steel narrow stile plate: 4-1/2" x 1-3/4" [114mm x 44mm]

Application: Door Closers; Other Hardware

Switch Type: Momentary

Contact Type: Field Convertible from DPST to DPDT

Model: Securitron PB3N
