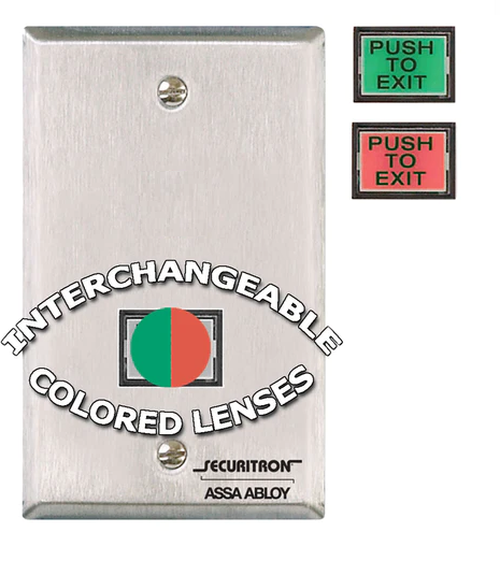

Securitron PB3EA 1" x 3/4" Non-Illuminated "Push to Exit" Button, Alternate Action, Single Gang

Securitron PB3EA 1" x 3/4" Noin-Illuminated "Push to Exit" Button, Alternate Action, Single Gang

High quality Push Buttons are available in a broad selection of colors, sizes, switch types and outputs. With a wide range of options for interchangeable lenses and field convertible outputs, push buttons can release any lock, alone or in conjunction with door closers and other hardware.

PB3EA - 3/4” Rectangle Button, Non-Illuminated, Alternate Action, DPST/DPDT, Single Gang, Green/Red Lens

Features
• Includes interchangeable green and red lenses
• Field convertible from DPST to DPDT
• Field selectable 12/24VDC
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Specifications
Electrical
• 29 mA at 12 VDC
• 40 mA at 24 VDC
• 3 A rated contacts

Dimensions
• Stainless steel single gang plate: 4-1/2" x 2-3/4" [114mm x 70mm]

Application: Door Closers; Other Hardware

Mounting Type: Single Gang

Switch Type: Alternate

Contact Type: Field Convertible from DPST to DPDT

Model: Securitron PB3EA
