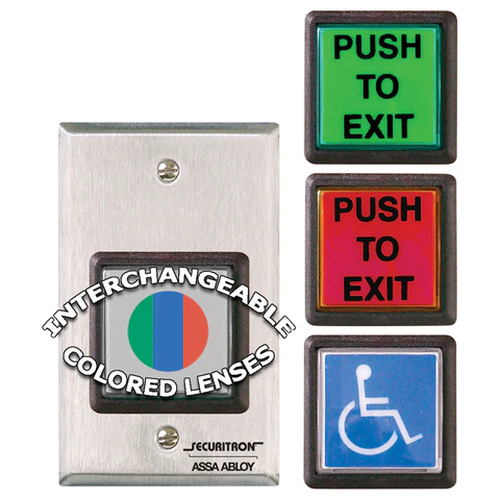

Securitron PB2E 2" Square Non-Illuminated "Push to Exit" Pushbutton, Single Gang

Securitron PB2E 2" Square Non-Illuminated "Push to Exit" Pushbutton, Single Gang, SPDT

High quality Securitron Push Buttons are available in a broad selection of colors, sizes, switch types and outputs. With a wide range of options for interchangeable lenses and field convertible outputs, Securitron push buttons can release any lock, alone or in conjunction with door closers and other hardware.

PB2E - 2” Button, Non-Illuminated, Momentary, Single Gang, SPDT, Green/Red/Handicap

Features
• Easy to read 2" size
• Includes interchangeable green, red and blue ADA lenses
• Field selectable 12 or 24VDC
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Specifications
Electrical
• 29 mA at 12 VDC
• 40 mA at 24 VDC
• 5 A rated SPDT relay

Dimensions
• Stainless steel single gang plate: 4-1/2" x 2-3/4" [114mm x 70mm]

Application: Door Closers; Other Hardware

Mounting Type: Single Gang

Switch Type: Momentary

Contact Type: DPST

Button Shape: Square

Product Height: 4-1/2 Inch

Product Width: 2-3/4 Inch

Model: Securitron PB2E
