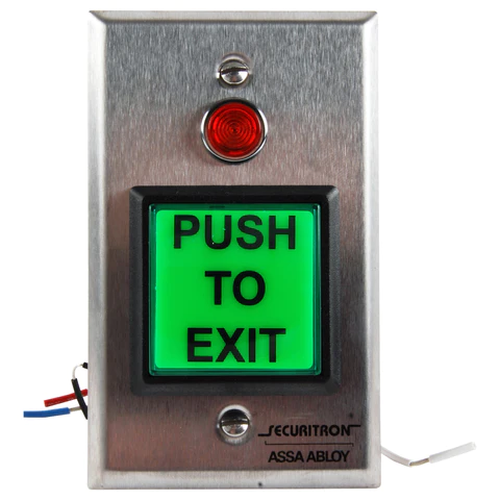

Securitron PB2 2" Square Illuminated "Push to Exit" Pushbutton, Single Gang

Securitron PB2 2" Square Illuminated "Push to Exit" Pushbutton, Single Gang, SPDT

Large square illuminated push buttons.

High quality Securitron Push Buttons are available in a broad selection of colors, sizes, switch types and outputs. With a wide range of options for interchangeable lenses and field convertible outputs, Securitron push buttons can release any lock, alone or in conjunction with door closers and other hardware.

PB2 - 2” Button, Illuminated, Momentary, Single Gang, Green/Red/Handicap

Features
• Easy to read 2" size
• Includes interchangeable green, red and blue ADA lenses
• Field selectable 12 or 24VDC
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Specifications
Electrical
• 29 mA at 12 VDC
• 40 mA at 24 VDC
• 5 A rated SPDT relay

Dimensions
• Stainless steel single gang plate: 4-1/2" x 2-3/4" [114mm x 70mm]

Application: Door Closers; Other Hardware

Mounting Type: Single Gang

Switch Type: Momentary

Contact Type: DPST

Button Shape: Square

Product Height: 4-1/2 Inch

Product Width: 2-3/4 Inch

Model: Securitron PB2
