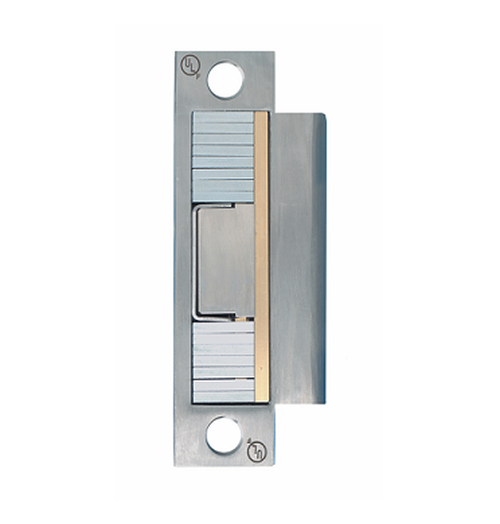

Securitron MUNL Mortise Unlatch Motorized Electric Strike

Securitron MUNL Mortise Unlatch, for use with Mortise Lock, Works with most cylindrical locksets up to 3/4" throw latchbolt

Mortise UnLatch is for any application where an electric strike would be used for a mortise type lock. The Mortise UnLatch includes field adjustability for latch and deadlatch positions, releases under pressure and includes a latch status monitoring output.

The universal compact, high performance, no cut electromechanical motorized strike for use with mortise locksets without deadbolts. Designed for easy installation, the MUNL is capable of releasing under preload conditions and accommodates latchbolts up to 3/4" [19mm] throw. Strong enough to withstand windstorm conditions, the MUNL is the UL listed, fire rated electric strike that includes lock monitoring standard, provides ANSI/BHMA Grade 1 holding power and includes field adjustability for latch and deadlatch positions.

Features
• No cutting required
• Preload capable
• Accomodates up to 3/4" [19mm] latchbolt (with 1/8" [3.175mm] door gap)
• Lock Monitor (Standard – SPDT)
• Fail secure (standard)
• Maintains dead latch function at all times
• Strike body depth 1-7/8" [47.6mm]
• SecuriCare five-year, no-fault, no questions asked warranty

Specifications
Electrical
• 12 VDC (continuous duty)
– Inrush – 4 Amps
– Standby Current – 600 mA
• 24 VDC (continuous duty)
– Inrush – 2 Amps
– Standby Current – 300 mA

Holding Force
• 1500 lbs [680kg] static

Operating Temperature
• -20˚ to 125˚ F [-29˚ to 52˚ C]

Certifications
• UL 10C Listed
• CAN4-S104, CAN/ULC Listed
• NFPA-252 fire door compliant
• UL listed to ANSI/ SDI-BHMA A250.13 (60PSI) Windstorm
• ANSI/BHMA A156.31, Grade 1; E09321, E09322, E09323
• ASTM-E152 fire door compliant

Model: Securitron MUNL-12, MUNL-24, MUNL-12-10B, MUNL-24-10B
