Securitron M68DLST Magnalock w/ 1200 lbs Holding Force, Bracket Mount, DPS, LED, Senstat, Tamper Switch

Securitron M68DLST Maglock, 1200 lbs Holding Force, Bracket Mount, 12/24VDC, Door Position Switch, LED, Senstat, Tamper Switch

Easily installed, bracket mounted Magnalock for higher security interior applications.
Ideal for traffic control in high-use areas where higher security is needed, the M68 electromagnetic lock provides reliability, durability and strength with low maintenance and efficient power consumption. Bracket mounting and wiring chamber provide ease of installation.

Features
• PoE friendly
• Automatic dual-voltage—no field adjustment required
• Bracket mounting provides the easiest install for out-swing doors
• Rust resistant—all ferrous metal surfaces plated for durability
• Instant release circuit —no residual magnetism
• Internal wire access chamber
• Noise suppression with included MOV
• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
• Strong hold and low maintenance
• MagnaCare® lifetime replacement, no fault, no questions asked warranty

Door Position Switch (DPS)
The Door Position Switch (DPS) provides a signal to an access control system indicating whether the door is open or closed. When used in conjunction with BondSTAT or SenSTAT, it provides layered status indication for precise information about the door state. The DPS may be ordered included with many Securitron Magnalocks — or as an upgrade kit.

LED (L)
The LED provides a local visual indicator of the status of the lock. On locks with the SenSTAT option, the LED will be green when the lock is powered but not secure, and red when the lock is secure. Locks without the SenSTAT option will only indicate green when powered.

SenSTAT (S)
Unlike commonly used door position switches that indicate only that a door is closed, SenSTAT detects the presence of an armature plate and notifies the access control or alarm system that the magnet is engaged. All SenSTAT Magnalocks use Form ‘C’ isolated contacts.

Anti-Tamper Sensor (T)
The Anti-Tamper option provides a Single Pole Double Throw (SPDT) switch output that indicates if the wire access chamber cover has been tampered with or removed. When connected to an alarm point on an alarm panel or access control system, it offers real-time notification of tampering attempts.

Specifications
Electrical
• 250 mA at 12 VDC
• 125 mA at 24 VDC

Holding Force
• 1,200 lbs [544kg]

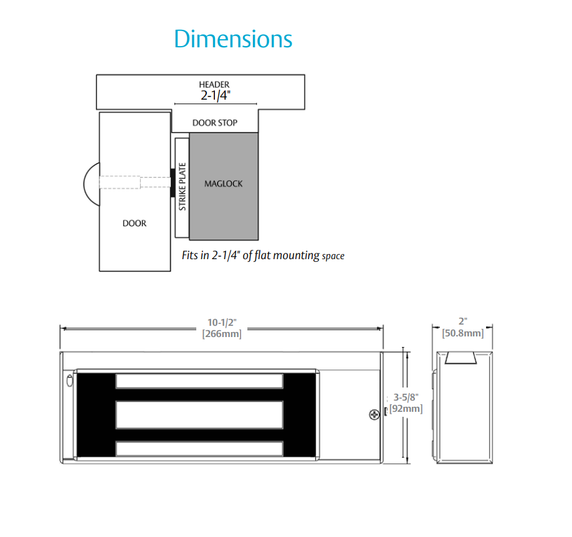

Dimensions
• Magnalock: 10-1/2"L x 2"D x 3-5/8"H
• Strike: 6"L x 1/2"D x 2-3/4"H

Operating Temperature
• +32 to +110F [0 to +43C]
• Indoor use only

Certifications
• UL 10C Listed
• CAN4-S104, CAN/ULC-S533 Listed
• ANSI/UL 294 Listed
• CSA-C22.2 No.205 Listed
• ANSI/BHMA A156.23, Grade 2; E18501-1000
• CSFM—California State Fire Marshal Approved
• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Model: Securitron M68DLST
