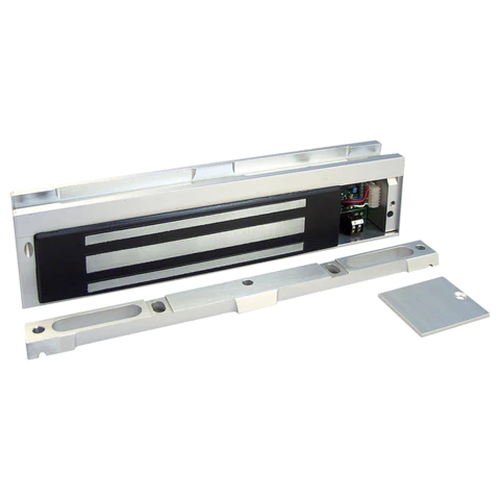

Securitron M38 Magnalock w/ 600 lbs Holding Force, Bracket Mount, No Monitoring

Securitron M38 Maglock, 600lb Holding Force, Bracket Mount, 12/24VDC, No Monitoring

Easily installed, bracket mounted Magnalockfor interior applications.
The M38 electromagnetic lock is ideal for traffic control in high-use areas within secured or monitored perimeters. Offerings include solutions for interior rooms, closets and hallways where reliability, high durability and low maintenance are required. Bracket mounting and wiring chamber provide quick, accurate installation.

Features
• Automatic dual-voltage—no field adjustment required
• Bracket mounting provides the easiest install for out-swing doors
• Rust resistant—all ferrous metal surfaces plated for durability
• Instant release circuit—no residual magnetism
• Internal wire access chamber
• Noise suppression with included MOV
• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Specifications
Electrical
• 350 mA at 12 VDC
• 170 mA at 24 VDC

Holding Force
• 600 lbs [272kg]

Operating Temperature
• 32˚ to 110˚F [0˚ to 43˚C]
• Indoor use only

Certifications
• UL 10C Listed
• CAN4-S104, CAN/ULC-S533 Listed
• ANSI/UL 294 Listed
• CSA-C22.2 No.205 Listed
• ANSI/BHMA A156.23, Grade 3; E18501-500 Compliant
• CSFM—California State Fire Marshal Approved
• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Model: Securitron M38
