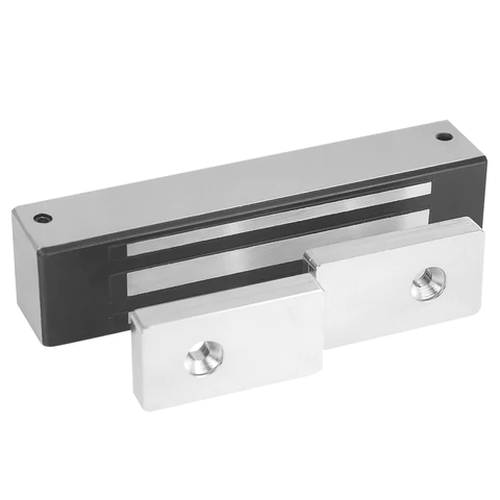

Securitron M32-SS Magnalock w/ 600 lbs Holding Force, Split Strike

Securitron M32-SS Model 32 Magnalock, 600lb Holding Force, Split Armature, 12/24VDC

The ultimate in Magnalock reliability for indoor/outdoor traffic control. The M32 electromagnetic lock is ideal for traffic control in high-use areas within secured or monitored perimeters. With unsurpassed durability, the M32 will last long after most buildings wear out. Applications include storage areas, rooms, and hallways where reliability, high durability and low maintenance are required.

Features
• Fire rated—3 hours
• PoE friendly
• Sustainability documentation
• Efficient, low power usage
• Automatic dual-voltage— no field adjustment required
• Fully sealed for weather resistant operations
• Size optimized for use with door closers
• Rust resistant—all ferrous metal surfaces plated for durability
• Instant release circuit—no residual magnetism
• Noise suppression with built-in MOV
• 10 ft [3.05m] of jacketed, stranded conductor cable
• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Split Strike Plate (SS)
A Split Strike Plate may be used for a double door with no mullion to provide traffic control using a single Magnalock.
*D and BD monitoring , not available with (SS) Split Strike option.

BondSTAT (B)
BondSTAT is the next generation of patented electromagnetic lock monitoring. BondSTAT delivers unparalleled peace of mind by detecting an armature plate and notifying access control and/or alarm systems that a door is properly secured. BondSTAT’s sensitive magnetic field monitors the entire surface of the armature plate, providing maximum assurance that the lock is engaged. Movement in the armature’s position beyond the set tolerance alerts the access control system that the Magnalock may not be generating its full holding force.

Specifications
Electrical
• 300 mA at 12 VDC
• 150 mA at 24 VDC

Holding Force
• 600 lbs [272kg]

Operating Temperature
• -40˚ to 140˚F [-40˚ to 60˚C]
• Indoor or Outdoor use

Certifications
• UL 10C Listed
• CAN4-S104, CAN/ULC-S533 Listed
• ANSI/UL 294 Listed
• CSA-C22.2 No.205 Listed
• ANSI/BHMA A156.23, Grade 3; E08501-500 Compliant
• CSFM—California State Fire Marshal Approved
• CE:EN 50081-1(92), EN 61000-6-2(99) Approved
• Environmental Product Declaration
• Health Product Declaration

Model: Securitron M32-SS, M32B-SS
