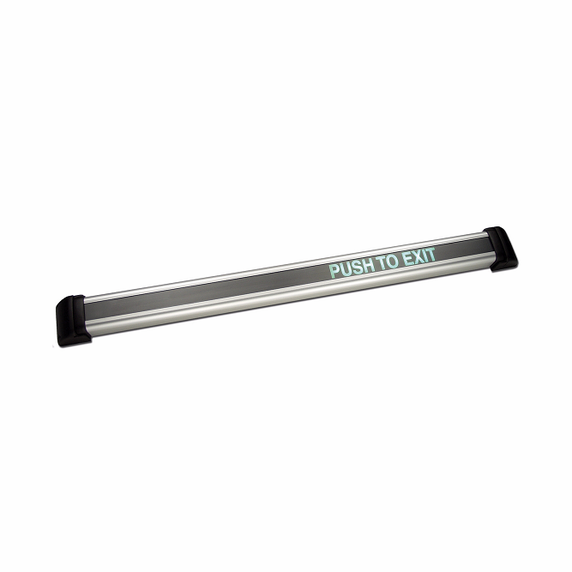

Securitron DSB-CLI Dual Sense Egress Bar, Illuminated, Clear Anodized

Securitron DSB-CLI Dual Sense Egress Bar, Illuminated Sign, Clear Anodized

The dependable DSB Dual Sense Bar is the most reliable exit device available for electronically locked, non-fire-rated doors.
Its unique design delivers superior fault tolerance with two independent, redundant switch circuits for releasing the lock. The DSB can be installed on all types of interior metal, aluminum or wood doors. Meets “no special tools or knowledge” criteria required by code.

Features
• Redundant switches
• Release triggered by either 1/8" mechanical movement or reliable touch sense technology
• Resistant to interference from radio frequency or electromagnetic frequency and external impact/ bounce attempts
• All metal construction
• Can be field cut to fit nonstandard door widths
• 16 ft. [4.8m] 22 AWG 6 conductor cable and armored door cord included
• Resists electrostatic discharge up to 27,000 volts
• MagnaCare® lifetime replacement, no fault, no questions asked warranty

Specifications
Electrical
• Dual Sense Bar with Illumination— 44 mA at 12 or 24 VDC

Operating Temperature
• +32 to +120F [0 to +49C]
• Indoor use only

Certifications
• CAN/ULC-S533 Listed
• ANSI/UL 294 Listed
• CSA-C22.2 No. 205 Listed
• NFPA 101

Model: Securitron DSB-CLI, DSB-CLI-42, DSB-CLI-48
