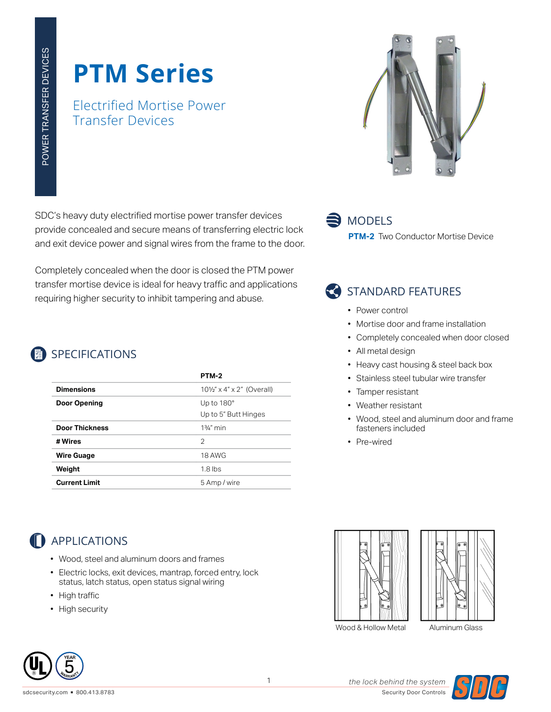

SDC PTM-2 Heavy Duty Series Electric Power Transfer Device, Two (2) 18 Gauge Conductor at 5 Amp

SDC PTM-2 PTM Heavy Duty Series Electric Power Transfer Device, Two (2) 18 Gauge Conductor at 5 Amp, 12/24VAC/DC

SDC’s heavy duty electrified mortise power transfer devices provide concealed and secure means of transferring electric lock and exit device power and signal wires from the frame to the door.

Completely concealed when the door is closed the PTM power transfer mortise device is ideal for heavy traffic and applications requiring higher security to inhibit tampering and abuse.

Features
• Power control
• Mortise door and frame installation
• Completely concealed when door closed
• All metal design
• Heavy cast housing & steel back box
• Stainless steel tubular wire transfer
• Tamper resistant
• Weather resistant
• Wood, steel and aluminum door and frame fasteners included
• Pre-wired

Specifications
Dimensions: 10-1/2” x 4” x 2” (Overall)

Door Opening
Up to 180°
Up to 5” Butt Hinges

Door Thickness: 1-3/4” min

# Wires: 2

Wire Guage: 18 AWG

Weight: 1.8 lbs

Current Limit: 5 Amp / wire

Applications
• Wood, steel and aluminum doors and frames
• Electric locks, exit devices, mantrap, forced entry, lock status, latch status, open status signal wiring
• High traffic
• High security

Certifications
UL 10C Positive Pressure Fire Tests, 3hr
Uniform Building Code (UBC) Standard 7-2

Model: SDC PTM-2AL, PTM-2BZ
