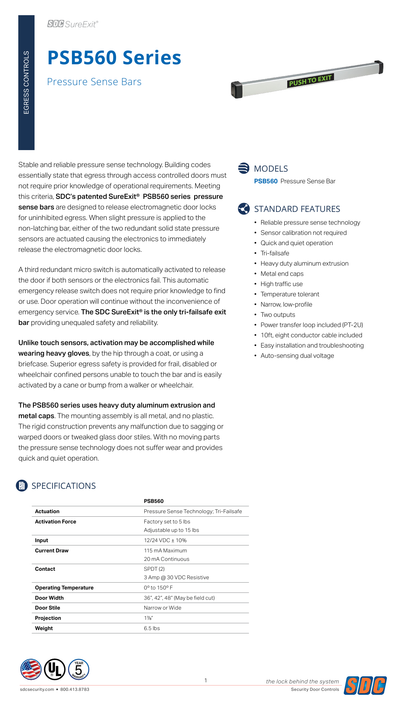

SDC PSB560V Pressure Sense Bar, Satin Aluminum Finish

SDC PSB560 SureExitSense Bar, Includes 10 Ft. Cable/Connector and PT-2U Armored Power Transfer Loop, Satin Aluminum Clear Anodized

The PSB560 series uses heavy duty aluminum extrusion and metal caps. The mounting assembly is all metal, and no plastic. The rigid construction prevents any malfunction due to sagging or warped doors or tweaked glass door stiles. With no moving parts the pressure sense technology does not suffer wear and provides quick and quiet operation.

Features
• Reliable pressure sense technology
• Sensor calibration not required
• Quick and quiet operation
• Tri-failsafe
• Heavy duty aluminum extrusion
• Metal end caps
• High traffic use
• Temperature tolerant
• Narrow, low-profile
• Two outputs
• Power transfer loop included (PT-2U)
• 10ft, eight conductor cable included
• Easy installation and troubleshooting
• Auto-sensing dual voltage

Applications
• Easy installation and Troubleshooting
• Sensor calibration not required
• Two outputs
• Temperature tolerant
• Narrow, low profile

Specifications
Actuation: Pressure Sense Technology; Tri-Failsafe

Activation Force
Factory set to 5 lbs
Adjustable up to 15 lbs

Input: 12/24 VDC ± 10%

Current Draw
115 mA Maximum
20 mA Continuous

Contact
SPDT (2)
3 Amp @ 30 VDC Resistive

Operating Temperature: 0º to 150º F

Door Stile: Narrow or Wide

Projection: 1-7/8"

Weight: 6.5 lbs

Certifications
UL 294 Access Control System Units
UL 1034 Burglary-Resistant Electric Locking Mechanisms
CSFM Listed 3625-0324:105

Model: SDC PSB560V36, PSB560V48
