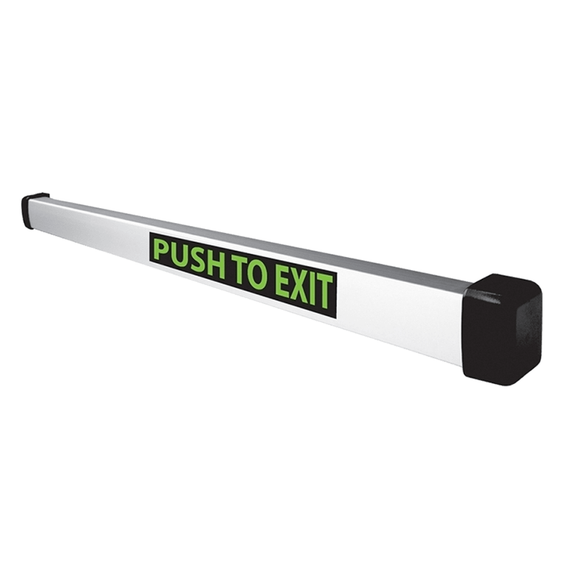

SDC MSB550 Mechanical Switch Bar

SDC MSB550 Exit Pushbar with Mechanical Switch, Includes PT-2U Power Transfer Loop, Satin Aluminum Clear Anodized

The MSB550 series uses heavy duty aluminum extrusion and metal caps. The mounting assembly is all metal, and no plastic. The rigid construction prevents any malfunction due to sagging or warped doors or tweaked glass door stiles. With a maximum total bar movement of only 1/8”, trigger activation to release the electromagnetic lock is quick and quiet.

Features
• 1/8” total bar movement
• Quick and quiet operation
• Heavy duty aluminum extrusion
• Metal end caps
• High traffic use
• Narrow, low-profile
• One output
• Power transfer loop included (PT-2U)
• Easy installation and troubleshooting

Applications
• Easy installation and Troubleshooting
• Narrow, low profile

Specifications
Contact
SPDT
5 Amp @ 30 VDC Resistive

Operating Environment: Indoor

Door Stile: Narrow or Wide

Projection: 1-7/8"

Weight: 6.5 lbs

Certifications
UL 294 Access Control System Units
UL 1034 Burglary-Resistant Electric Locking Mechanisms
CSFM Listed 3625-0324:105

Model: SDC MSB550V36, MSB550V48, MSB550Y36, MSB550Y48
