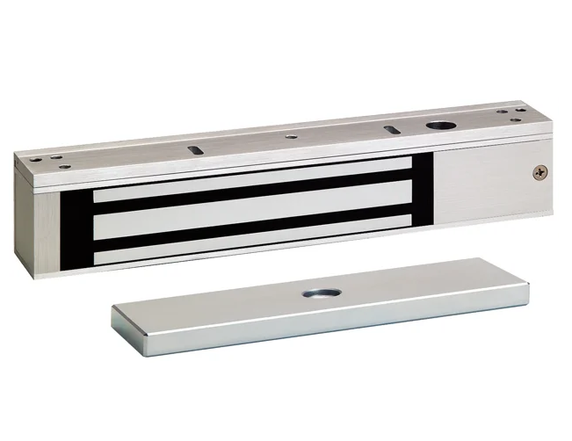

SDC E600 Excel Series Value Engineered Magnetic Lock, 600 lbs Holding Force

SDC E600 Excel Series Value Engineered Magnetic Lock, 12/24VDC, 600 lbs. Holding Force, with Door Status, Locked Status and LED

Value priced E600 locks are fully featured, easier to install and provide superior, less obtrusive architectural appearance compared to stainless steel epoxy sealed magnetic locks. Full monitoring is standard. The quick mount assembly reduces installation time compared to epoxy sealed magnetic locks.

Features
• Interlocking quick mount assembly
• Adjustable mounting bracket
• Choice of self drilling and tapping mounting screws or machine screws
• Wire access chamber with terminal block
• Field selectable dual voltage
• Voltage and current spike protection
• Instant release anti-residual magnetism circuitry
• Door position status (DPS)
• Bond alert status (BAS)
• Visual status indicator (LED)

Specifications
Housing: Aluminum

Finish: 628 Dull Aluminum

Door Type: Swing, Single

Holding Force: 600 lbs

Dimensions
9-7/8” x 2-7/8” x 1” Housing
7-5/16” x 2-3/8” W x 1/2” Armature

Weight: 7 lbs

Input
12/24 VDC ± 10%
Field Selectable

Current Draw
250 mA @ 24 VDC
500 mA @ 12 VDC

Door Position Status (DPS)
SPDT
250 mA @ 30 VDC Resistive

Bond Alert Status (BAS)
SPDT
2 Amps @ 30 VDC Resistive

Certifications
UL 864 Control Units and Accessories for Fire Alarm Systems

Model: SDC E600
