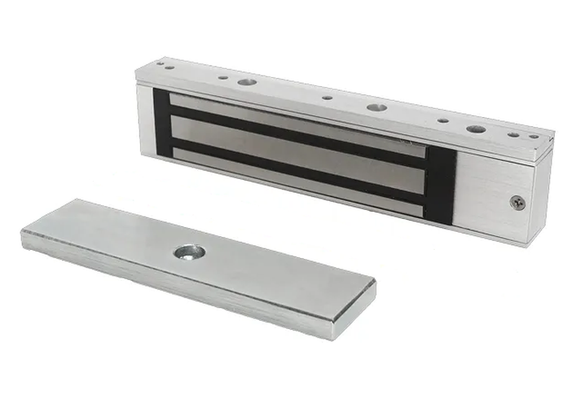

SDC E300 Excel Series Value Engineered Magnetic Lock, 300 lbs Holding Force

SDC E300 Excel Series Value Engineered Magnetic Lock, 12/24VDC, 300 lbs. Holding Force, with Locked Status

Eliminate keys and expand the reach of access control systems to drawers, cabinets and lockers – any critical use - where the application of a compact, specialized electromagnetic lock provides a higher level of security. SDC’s E300 micro electromagnetic cabinet locks provide a connected access control solution that is virtually maintenance free and has a lock status output for remote monitoring and system application needs.

The compact size allows easy installation in small cabinets or restricted areas. No special tools are required.

Features
• Wire access chamber with terminal block
• Interlocking quick mount assembly
• Field selectable dual voltage
• Voltage and current spike protection
• Captive lock mounting screws
• Self-drilling and tapping sheet metal screws
• Bond alert status (BAS)

Specifications
Housing: Aluminum

Finish: 628 Dull Aluminum

Holding Force: 300 lbs

Dimensions
7” x 1-5/8” x 7/8” Housing
5-1/8” x 1-1/4” x 5/16” Armature

Weight: 2.5 lbs

Input
12/24 VDC ± 10%
Field Selectable

Current Draw
180 mA @ 24 VDC
360 mA @ 12 VDC

Bond Alert Status (BAS)
SPDT
250 mA @ 30 VDC Resistive

Certifications
UL 864 Control Units and Accessories for Fire Alarm Systems

Model: SDC E300
