SDC 926 Outdoor Self-Contained Digital Keypad

SDC 926 Outdoor Stand Alone Digital Keypad for Surface Wall or Pedestal Post Mount

SDC’s 926 series outdoor standalone digital keypads with incorporated privacy and weather protected housing are designed to control doors or gates with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid four to six digit code activates one or both of the output relays.

The keypad electronics are secured by an integral key lock and built in tamper switch.

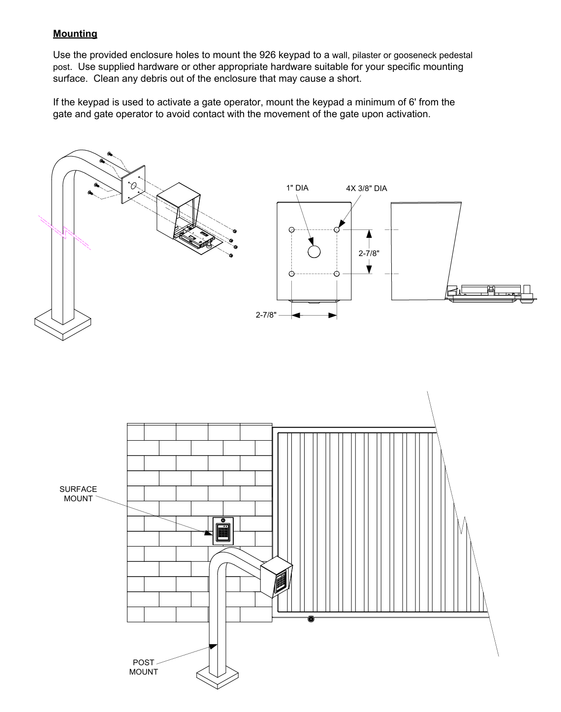

The heavy steel vandal resistant housing design allows the 926 to be surface mounted on a wall or pedestal post.

926 Outdoor Self-Contained Keypad

Features
• Digital keypad with backlit keys
• 12-key illuminated, moisture-resistant keypad
• Weather and vandal resistant housing with tactile metal keys
• Keypad programmable
• 500 user codes
• 4 outputs, 2 relay and 2 solid state
• Outputs timed or latching (on/off)
• Assign entry PIN’s to relays 1 and/or 2
• Choice of door sense or relay inhibit input
• Built-in tamper switch
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-exit (REX)
• Audible code entry verification
• Visual status indicators (LED)

Applications
• Surface wall or pedastal post mount

Dual LED Status Indicators
• Configurable illumination: on, off, timed
• LED status: access, lockout

Specifications
Input: 12/24 VAC/DC

Current: 30mA Typical, 150mA Maximum

Output
Relay 1 - SPDT 5 Amps @ 28VDC
Relay 2 - SPDT 2 Amps @ 28VDC

Switch to Common Outputs 3 & 4 – 10 0 mA @ 24 VDC

Operating Temparature: -4ºF to +140ºF (-20ºC to +60ºC)

Operating Humidity: 5% to 95% Non-Condensing

Dimensions: 4-3/4”W x 6-3/8”H x 4-1/2”D

Weight: 3 lbs

Model: SDC 926
