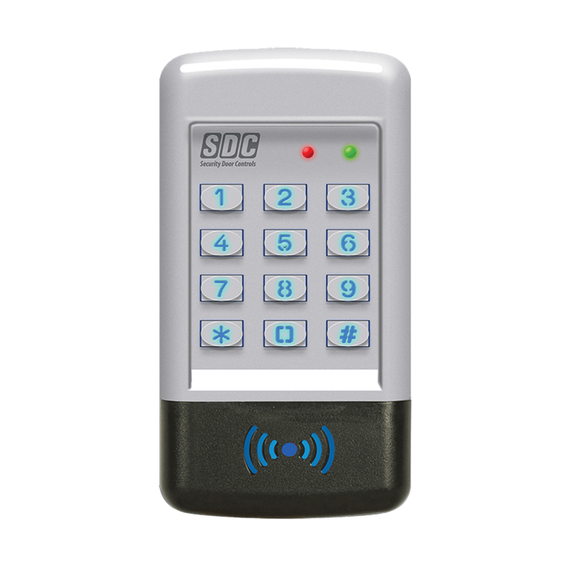

SDC 920P EntryCheck Indoor/Outdoor Self-Contained Digital Keypad w/ Prox Reader

SDC 920P Indoor/Outdoor EntryCheck Stand Alone Digital Keypad, with Prox Reader, 12/24VAC/DC

SDC’s EntryCheck 920 series indoor/outdoor digital keypads are designed to control access of a single entry point with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Featuring heavy cast vandal resistant housing and cast metal blue backlit keys.

920P Indoor/Outdoor Self-Contained Keypad with Integrated Proximity Reader

Features
• Digital keypad with backlit keys
• 12-key illuminated, moisture-resistant keypad
• Weather and vandal resistant housing with tactile keys
• Built-in tamper switch
• Keypad programmable
• Visual status indicators (LED)

INTEGRATED PROXIMITY READERS ONLY
• 3 user modes - PIN or card, card only, card and PIN

Applications
• Single gang wall or surface mount

Dual LED Status Indicators
• Configurable illumination: on, off, timed
• LED status: access, lockout

Specifications
Keypad Construction: Die Cast Metal

Keypad Finish: Aluminum Powder Coat

Input: 12/24 VAC/DC

Current: 30mA Typical, 150mA Maximum

Output
Relay 1 -
SPDT 5 Amps @ 30VDC
Relay 2 -
SPDT 2 Amps @ 30VDC

Outputs 3 & 4
100mA @ 30VDC

Wiring: 6” Pigtail

Operating Temparature: -4ºF to +140ºF (-20ºC to +60ºC)

Operating Humidity: 5% to 95% Non-Condensing

Dimensions: 3”W x 5-3/4”H x 1-7/16”D (1-1/2” Wall Projection)

Weight: 2 lbs

Model: SDC 920P
