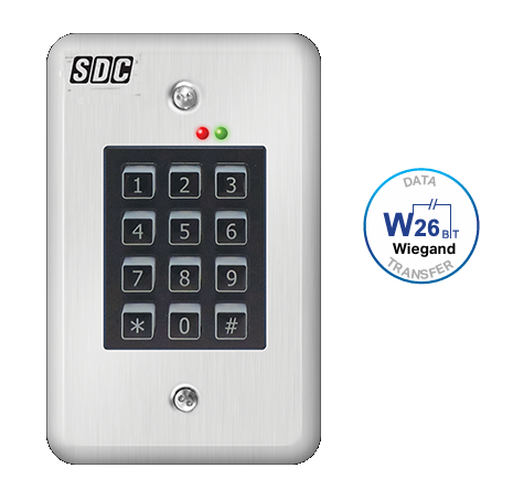

SDC 918W EntryCheck Indoor Weigand Output Keypad

SDC 918W Indoor EntryCheck Wiegand Output Digital Indoor Keypad

SDC’s 918 series of indoor standalone digital keypads are designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.

918W models are designed to interface with SDC’s IPPro® or most access control systems, providing a standard 26-bit wiegand output.

918W Indoor Weigand Output Keypad

Features
• 12-key illuminated, moisture-resistant keypad
• Thick stainless steel faceplate
• Tamper-resistant screws
• Keypad programmable
• Tactile keys with selectable audible levels for key depression or output activation
• Adjustable audible annunciation
• Visual status indicators (LED)

Specifications
Keypad: Brushed Stainless Steel 3/32” Thick

Input: 5-16 VDC

Current: 30mA Typical, 150mA Maximum

Output: 26-bit Wiegand Only

Wiring: 6” Pigtail

Operating Temparature: -4ºF to +140ºF (-20ºC to +60ºC)

Operating Humidity: 5% to 95% Non-Condensing

Dimension:s 3”W x 43/4”H x 11/2”D (1/4” Wall Projection)

Weight: 0.5 lbs

Model: SDC 918W
