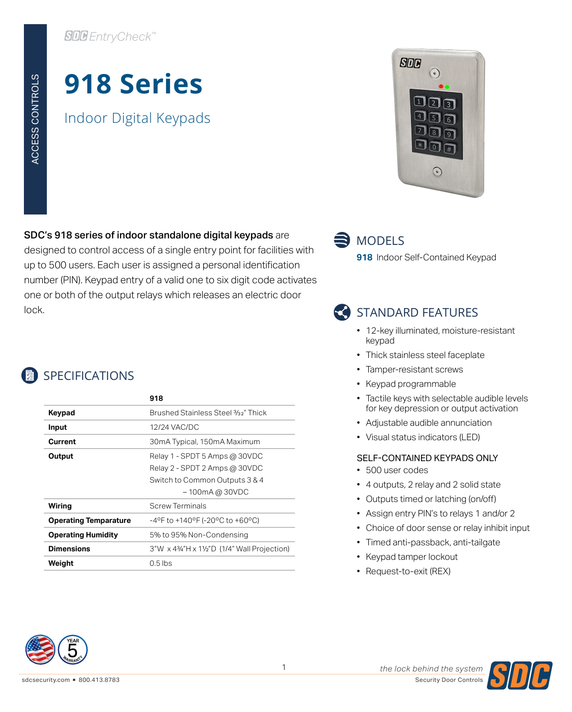

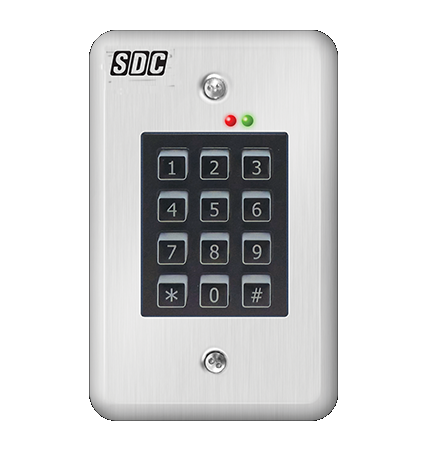

SDC 918U EntryCheck Indoor Digital Keypad, Satin Stainless Steel Finish

SDC 918U Indoor EntryCheck Stand Alone Digital Indoor Keypad, 12/24VAC/DC, Satin Stainless Steel Finish

SDC’s 918 series of indoor standalone digital keypads are designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.

918 Indoor Self-Contained Keypad

Features
• 12-key illuminated, moisture-resistant keypad
• Thick stainless steel faceplate
• Tamper-resistant screws
• Keypad programmable
• Tactile keys with selectable audible levels for key depression or output activation
• Adjustable audible annunciation
• Visual status indicators (LED)

SELF-CONTAINED KEYPADS ONLY
• 500 user codes
• 4 outputs, 2 relay and 2 solid state
• Outputs timed or latching (on/off)
• Assign entry PIN’s to relays 1 and/or 2
• Choice of door sense or relay inhibit input
• Timed anti-passback, anti-tailgate
• Keypad tamper lockout
• Request-to-exit (REX)

Specifications
Keypad: Brushed Stainless Steel 3/32” Thick

Input: 12/24 VAC/DC

Current: 30mA Typical, 150mA Maximum

Output
Relay 1 - SPDT 5 Amps @ 30VDC
Relay 2 - SPDT 2 Amps @ 30VDC
Switch to Common Outputs 3 & 4
– 100mA @ 30VDC

Wiring: Screw Terminals

Operating Temparature: -4ºF to +140ºF (-20ºC to +60ºC)

Operating Humidity: 5% to 95% Non-Condensing

Dimension:s 3”W x 43/4”H x 11/2”D (1/4” Wall Projection)

Weight: 0.5 lbs

Model: SDC 918U
