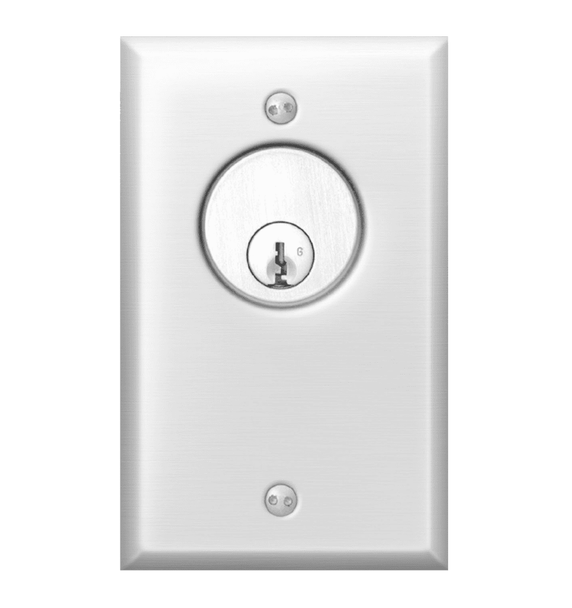

SDC 702U Single Gang Keyswitch, Momentary SPDT Contact, Satin Stainless Steel Finish

SDC 702U 6 Amp Key Switch Assembly, Single Gang, Momentary SPDT Contact, 20 Gauge Stainless Steel Faceplate, Satin Stainless Steel

SDC key switch assemblies provide an economical method of providing authorized control for a variety of applications. A choice of several contact configurations ensure compatibility with virtually any system. Key switch assemblies are compatible with U.S. standard, 1” to 1-3/8” mortise key cylinders and interchangeable core cylinders*. Compatibility with a new or existing facility mechanical key system is maintained.

SDC’s 700 series switch assemblies come standard with stainless steel faceplates and a heavy duty rated switches.

Key cylinders not included order separately.

700 Key Switch, Single Gang

Features
• 20 gauge stainless steel faceplates
• Momentary (MO)
• SPDT or DPDT
• 22 gauge wire leads, 7”
• Tamper resistant, recessed cylinder*
• Tamper resistant spanner screws
• 1” - 1-3/8” mortise cylinder compatible
• Large actuator for positive and consistent activation

Specifications
Faceplate: Stainless Steel, 20 Guage

Size: Single Gang

Dimensions: 2-7/8” x 4-1/2”

Weight: 0.5 lbs

Contact Rating: 2 Amps @ 30 VDC Resistive

Wire Leads: 7”, 22 Guage

Visual status indicator (LED): 20 mA @ 24 VDC

Anti-tamper switch (ATS): 200 mA @ 12/24 VDC

Certifications
UL 294 Access Control System Units

Model: SDC 702U
