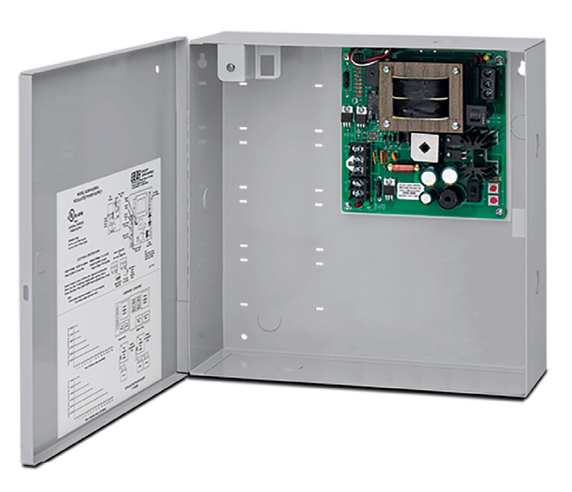

SDC 632RFA Power Supply, 2 Amp, 12/24 VDC Field Selectable, Class 2 Output, w/ Large Cabinet

SDC 632RFA 2 Amp Power Supply, 12/24 VDC Field Selectable, Class 2 Output, 16”W x 14”H x 6.5”D  Large Cabinet

632RFA 2 Amp DC Power Controller with Large Cabinet

Features
• Regulated and filtered linear DC power
• Class 2 output
• Field selectable dual voltage
• Fire/emergency release input
• Isolated battery charging circuit
• Low battery disconnect
• Input and output surge protection
• Visual status indicator (LED)
• Cabinet enclosures with pre-configured control module mounting holes

Specifications
Input: 115 VAC; 800 mA; 50/60 Hz

Output: 12/24 VDC; 2 Amp

Battery Charger: 13.5/27 VDC; 250 mA

Cabinet: 16” x 14” x 6.5”; 16Guage

Weight: 20lbs

Applications
• Fire/Emergency Release Input
• Isolated Battery Charging Circuit
• Low Battery Disconnect
• Door Control Modules
• Input & Output Surge Protection
• Visual Status Indicator (LED)
• System On/Off Switches
• 6' Power Cord
• Key Lock Cover
• International Standard Input

Certifications
UL 1012 Power Units Other Than Class 2
CSA-C22.2 No. 107.1 Power Conversion Equipment
UL 2043 Fire Test for Heat and Visible Smoke Release for Discrete
Products and Their Accessories Installed in Air-Handling Spaces

Model: SDC 632RFA
