SDC 55-AU Uniflex Heavy Duty Electric Strike for Cylindrical Locksets, Satin Stainless Steel Finish

SDC 55-AU Uniflex Grade 1 Heavy Duty Electric Strike, 3/4" Latchbolt, 12/24VDC, Fail Safe/Fail Secure, Strike Body and Faceplate Compatible with all Cylindrical Locksets, Satin Stainless Steel

SDC’s 55 series 3/4” latchbolt electric strikes are heavy duty, designed for installation in hollow metal frames for access control of cylindrical locksets, mortise locksets with or without deadbolts and mortise exit devices. 55 series strikes accept 3/4” throw latchbolts and up to 1” throw deadbolts.

The choice of six application faceplates eliminates the need for centerline relocation, making them ideal for new or retrofit, high security access control applications.

55 series strike retrofit existing ANSI 47/8” strike prep – no centerline relocation required.

Features
• Heavy duty
• Stainless steel components
• Stainless steel square corner faceplate
• Heavy cast housing body and keeper
• Corrosion and tamper resistant
• Horizontal alignment adjustment
• Non-handed
• Interchangeable faceplate design
• Internally mounted solenoid
• Field selectable operation
• Field selectable dual voltage
• Voltage and current spike protection
• Pigtail connectors

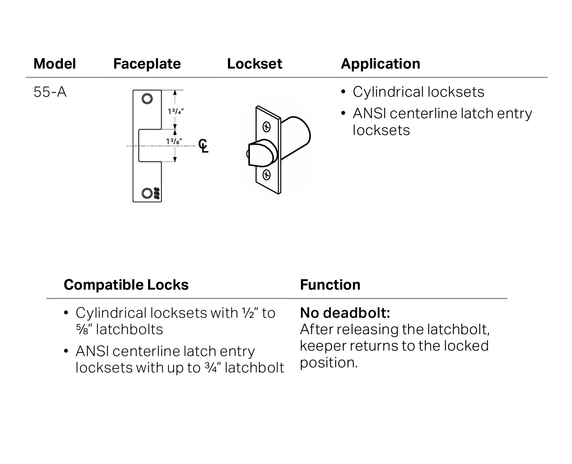

Model: 55-A
Application
• Cylindrical locksets
• ANSI centerline latch entry locksets

Compatible Locks
• Cylindrical locksets with 1/2” to 5/8" latchbolts
• ANSI centerline latch entry locksets with up to 3/4" latchbolt

Function
• No deadbolt: After releasing the latchbolt, keeper returns to the locked position.

Specifications
Latchbolt: 3/4” Throw

Deadbolt: Up to 1” Throw

Static Strength: 2,500 lbs

Dynamic Strength: 70 lbs

Endurance Cycles: 1,000,000

Keeper Depth: 1-5/8”

Weight: 3 lbs

Frame Application: Hollow Metal

Input: 12/24 VDC ± 10%

Current Draw
600 mA @ 12VDC
350 mA @ 24VDC

Monitoring Contacts
SPDT
5 Amps @ 30 VDC Resistive

Certifications
UL 1034 Burglary-Resistant Electric Locking Mechanisms
UL 10C Positive Pressure Fire Tests of Door Assemblies*
ANSI/BHMA A156.31 Grade 1

Model: SDC 55-AU, 55-AUXLBM
