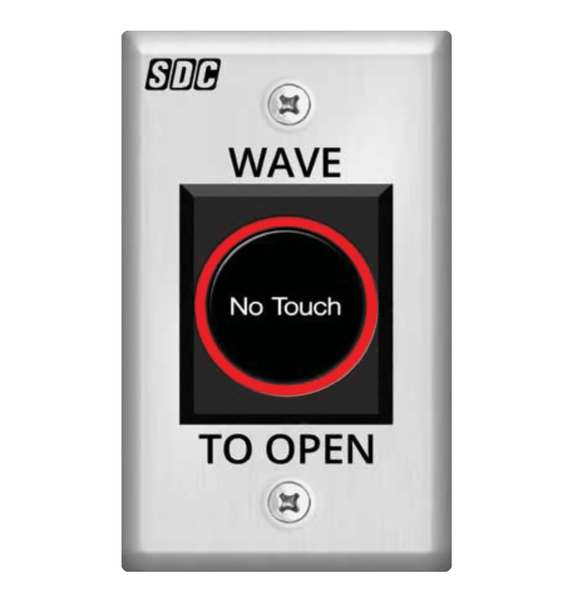

SDC 474U Single Gang No Touch Sensor, Satin Stainless Steel Finish

SDC 474U Sanitary, No Touch, Wave-to-Exit Switch, Single Gang, "No Touch Exit"

SDC’s 470 series touchless switches use active IR sensor technology. A simple wave of the hand in front of the 470 touchless switch activates the switch to control electric locks/ strikes, magnetic locks or automatic door operators for entry or egress. 470 series touchless switches come standard with an adjustable 2”-7” activation read range.

The dual LED, illuminated sensor, clearly indicates status. The red LED indicates inactive status, which changes to a temporary green LED state to indicate activation. Ideal for, but not limited to, facilities that require contamination control. Touchless switches help reduce the spread of infection and disease in any application.

Features
• Wave-to-open activation
• Active IR sensor technology
• Adjustable sensing range 2”-7”
• Adjustable relay activation time
• Illuminated dual LED sensor (red/green)
• Durable stainless steel faceplate
• 8” wire harness
• Field selectable dual voltage

Specifications
Faceplate: 20 Guage Stainless Steel

Size: Single Gang

Dimensions: 2-7/8" x 4-1/2"

Signage: WAVE TO OPEN

Weight: 0.5 lbs

Input: 12/24 VDC ± 10%

Current Draw
36 mA (stand by)
45 mA (active)

Range: 2" - 7"

Sensor: LED RED (stand by), GREEN (active)

Contact: SPDT

Rating: 3 Amp @ 30 VDC Resistive

Type: Momentary (MO)

Depth: 1-3/8"

Model: SDC 474U
