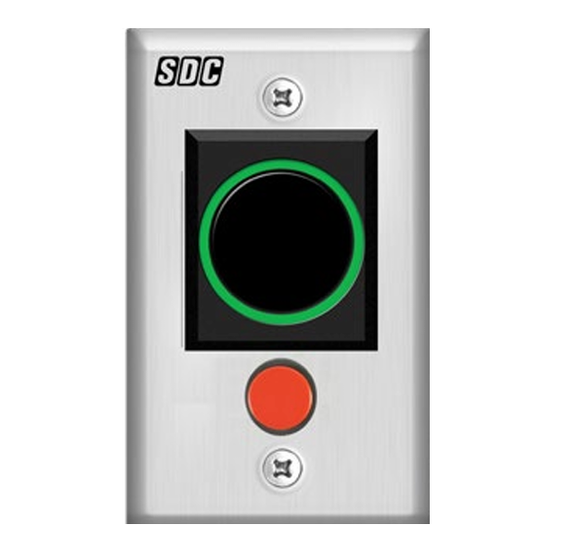

SDC 474MU Single Gang No Touch Sensor w/ Manual Override Button, Satin Stainless Steel Finish

SDC 474MU Infrared Touchless Sense Switch Exit Switch with Manual Override Button, Satin Stainless Steel

SDC’s 470 series touchless switches use active IR sensor technology. A simple wave of the hand in front of the 470 touchless switch activates the switch to control electric locks/ strikes, magnetic locks or automatic door operators for entry or egress. 470 series touchless switches come standard with an adjustable 2”-7” activation read range.

The dual LED, illuminated sensor, clearly indicates status. The red LED indicates inactive status, which changes to a temporary green LED state to indicate activation. Ideal for, but not limited to, facilities that require contamination control. Touchless switches help reduce the spread of infection and disease in any application.

Features
• Wave-to-open activation
• Active IR sensor technology
• Adjustable sensing range 2”-7”
• Adjustable relay activation time
• Illuminated dual LED sensor (red/green)
• Durable stainless steel faceplate
• 8” wire harness
• Field selectable dual voltage

Specifications
Faceplate: 20 Guage Stainless Steel

Size: Single Gang

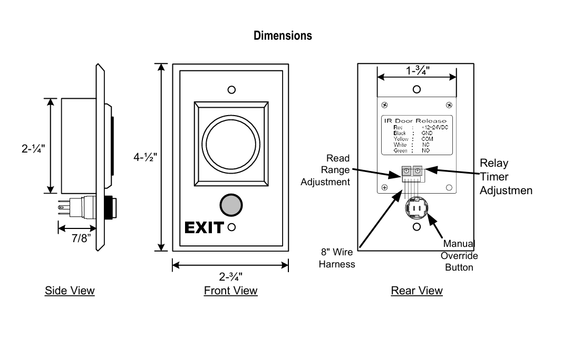

Dimensions: 2-7/8" x 4-1/2"

Weight: 0.5 lbs

Input: 12/24 VDC ± 10%

Current Draw
36 mA (stand by)
45 mA (active)

Range: 2" - 7"

Sensor: LED RED (stand by), GREEN (active)

Contact: SPDT

Rating: 3 Amp @ 30 VDC Resistive

Type: Momentary (MO)

Depth: 1-3/8"

Manual Override: SPDT
3 Amp @ 30 VDC Resistive
Alternate Action (AA) On/Of
*Manual override button model utilizes mechanical switch to maintain operation in the event of power loss or sensor failure.

Model: SDC 474MU
