SDC 45-4SU Electric Strike w/ 4-7/8" Square Corner Faceplate

SDC 45-4SU Electric Strike, 12/24VAC/DC, Latch Bolt Monitor Standard, 4.875" x 1.25" Square Corner Faceplate, Field Selectable Fail safe/Fail secure, Satin Stainless Steel

SDC’s 45 series 5/8” latchbolt electric strikes are centerline latch entry strikes designed for use with cylindrical locksets and mortise locksets without deadbolt for both metal and wood frames. 45 series strikes accept 5/8” throw latchbolts or up to 3/4” throw latchbolts with 1/8” door gap.

Features
• Low profile
• Fewer moving parts
• Stainless steel components
• Durable die cast housing body
• Corrosion resistant
• Horizontal alignment adjustment
• Mounting tabs included
• Non-handed
• Interchangeable faceplate design
• Internally mounted solenoid
• Field selectable operation
• Field selectable dual voltage
• Voltage and current spike protection
• Pigtail connectors
• Latch status (LS)

Application
• Fail Secure Operation
• Fail Safe Operation

Specifications
Latchbolt: 5/8” Throw, Up to 3/4” Throw with 1/8” Door Gap

Static Strength: 1,000 lbs

Dynamic Strength: 70 lbs

Endurance Cycles: 250,000

Keeper Depth: 1-3/16"

Weight: 2 lbs

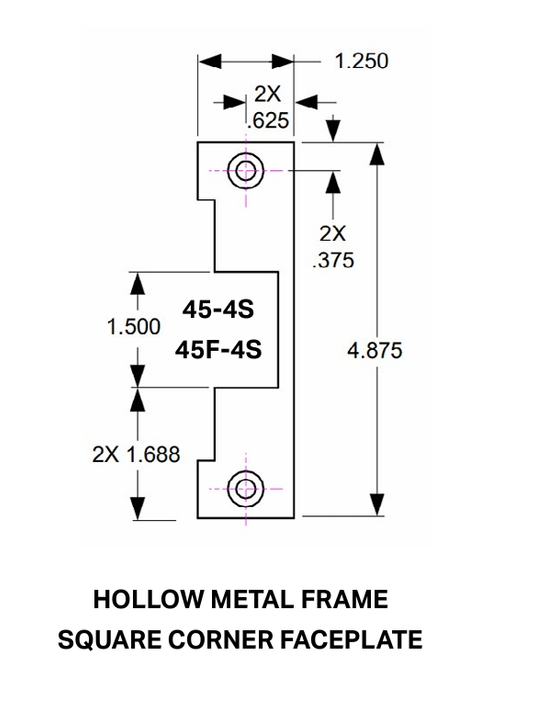

Faceplates: 45-4S - Square Corner Stainless Steel, 4-7/8” x 1-1/4”

Frame Application: 45-4S - Hollow Metal

Input: 12/24 VDC ± 10%

Current Draw
200 mA @ 12VDC
100 mA @ 24VDC

Monitoring Contacts
SPDT
3 Amps @ 30 VDC Resistive

Certifications
UL 1034 Burglary-Resistant Electric Locking Mechanisms
UL 10C Positive Pressure Fire Tests of Door Assemblies*
ANSI/BHMA A156.31

Model: SDC 45-4SU
