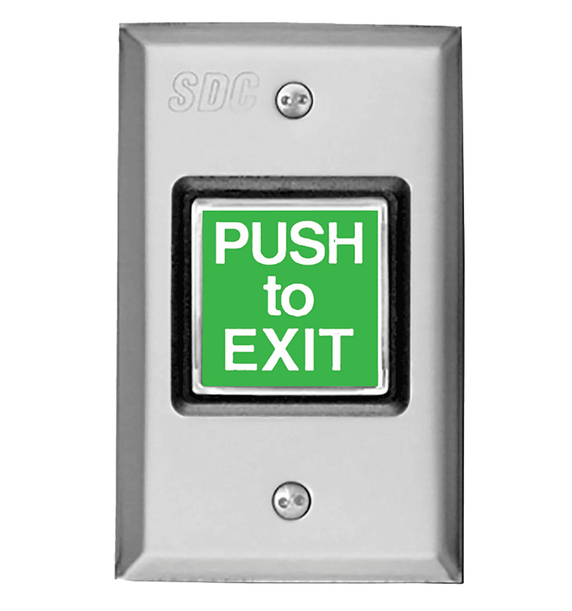

SDC 423MU Push to Exit Button Switch, Electronic Timer, Fixed (30 seconds), Satin Stainless Steel Finish

SDC 423MU 2" Exit Switch, 12/24VDC, 2A DPDT Contact, "PUSH TO EXIT", Integrated Fixed 30 Second Timer, Satin Stainless Steel

The illuminated switch button is two inches square for easy activation and is visually conspicuous. The high impact resistant material stands up to abuse. The “PUSH TO EXIT” sign complies with NFPA requirements.

The 420 series utilizes 2” illuminated buttons. The standard “EXIT” signage is large for easy identification. The high impact resistant material stands up to abuse.

Features
• Green illuminated switch buttons
• Stainless steel faceplate
• Push-to-exit sign
• Green lens included
• Auto-sensing dual voltage

Specifications
Faceplate: 20 Guage Stainless Steel

Size: Single Gang

Dimensions: 2-7/8" x 4-1/2"

Signage: PUSH TO EXIT

Button Lens: Green

Wire Leads: 6" 20 AWG

Weight: 0.5 lbs

Input: 12/24 VDC ± 10%

Contact: DPDT

Rating: 3 Amp @ 30 VDC Resistive

Type: Electronic Timer, Fixed (30 Seconds)

Certifications
UL 294 Access Control System Units

Model: SDC 423MU
