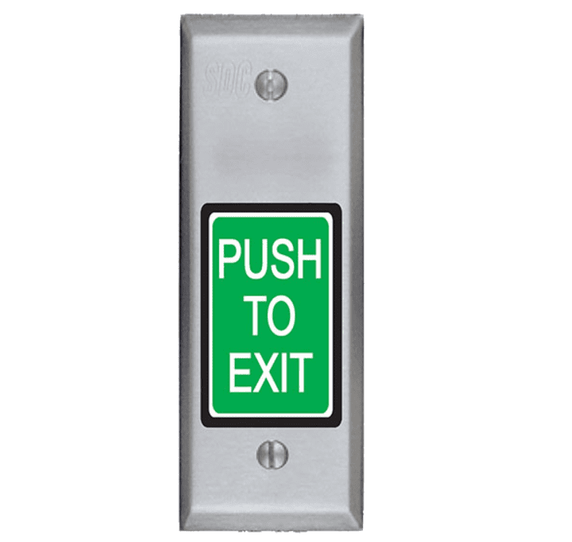

SDC 413NU Narrow Push to Exit Button, Electronic Timer, Adjustable 1-60 Seconds, Satin Stainless Steel Finish

SDC 413NU 1-3/4" x 1" Exit Switch, 12/24VDC, 2A DPDT Contact, "PUSH TO EXIT", Integrated Electronic Timer, Adjustable 1-60 Seconds, Satin Stainless Steel

The illuminated switch button is two inches square for easy activation and is visually conspicuous. The high impact resistant material stands up to abuse. The “PUSH TO EXIT” sign complies with NFPA requirements.

The 410 series narrow frame mount exit switch assemblies include a large push button on a narrow frame mount plate with push switch signage “PUSH TO EXIT”.

Features
• Green or red illuminated switch buttons
• Electronic timer, pneumatic timer, momentary (MO) and alternate action (AA) on/off models
• Stainless steel faceplate
• Push-to-exit sign
• Green and red lens included
• Auto-sensing dual voltage

Specifications
Faceplate: 20 Guage Stainless Steel

Size: Narrow

Dimensions: 1-3/4" x 4-1/2"

Signage: PUSH TO EXIT

Button Lens: Green/Red

Wire Leads: 6" 20 AWG

Weight: 0.5 lbs

Input: 12/24 VDC ± 10%

Contact: DPDT

Rating: 3 Amp @ 30 VDC Resistive

Type: Electronic Timer, Adjustable (1-60)

Certifications
UL 294 Access Control System Units

Model: SDC 413NU
