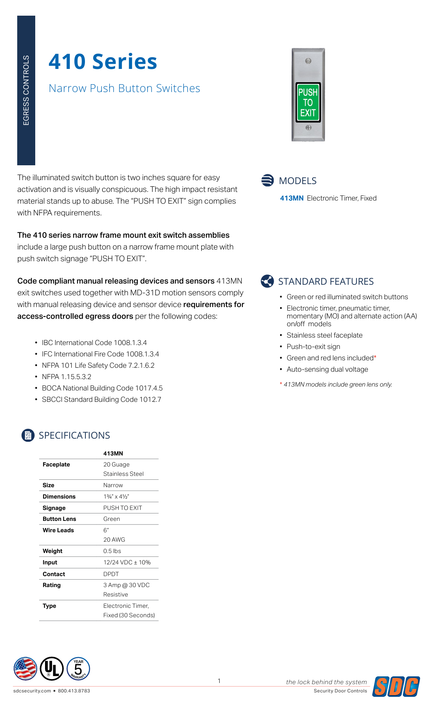

SDC 413MNU Narrow Push to Exit Button, Electronic Timer, Fixed (30 seconds), Satin Stainless Steel Finish

SDC 413MNU Narrow Code Compliant Manual Release Device, 12/24VDC, Integrated Fixed 30 Second Timer, Satin Stainless Steel

The illuminated switch button is two inches square for easy activation and is visually conspicuous. The high impact resistant material stands up to abuse. The “PUSH TO EXIT” sign complies with NFPA requirements.

The 410 series narrow frame mount exit switch assemblies include a large push button on a narrow frame mount plate with push switch signage “PUSH TO EXIT”.

Code compliant manual releasing devices and sensors 413MN exit switches used together with MD-31D motion sensors comply with manual releasing device and sensor device requirements for access-controlled egress doors per the following codes:
• IBC International Code 1008.1.3.4
• IFC International Fire Code 1008.1.3.4
• NFPA 101 Life Safety Code 7.2.1.6.2
• NFPA 1.15.5.3.2
• BOCA National Building Code 1017.4.5
• SBCCI Standard Building Code 1012.7

Features
• Green or red illuminated switch buttons
• Electronic timer, pneumatic timer, momentary (MO) and alternate action (AA) on/off models
• Stainless steel faceplate
• Push-to-exit sign
• 413MN models include green lens only
• Auto-sensing dual voltage

Specifications
Faceplate: 20 Guage Stainless Steel

Size: Narrow

Dimensions: 1-3/4" x 4-1/2"

Signage: PUSH TO EXIT

Button Lens: Green

Wire Leads: 6" 20 AWG

Weight: 0.5 lbs

Input: 12/24 VDC ± 10%

Contact: DPDT

Rating: 3 Amp @ 30 VDC Resistive

Type: Electronic Timer, Fixed (30 Seconds)

Certifications
UL 294 Access Control System Units

Model: SDC 413MNU
