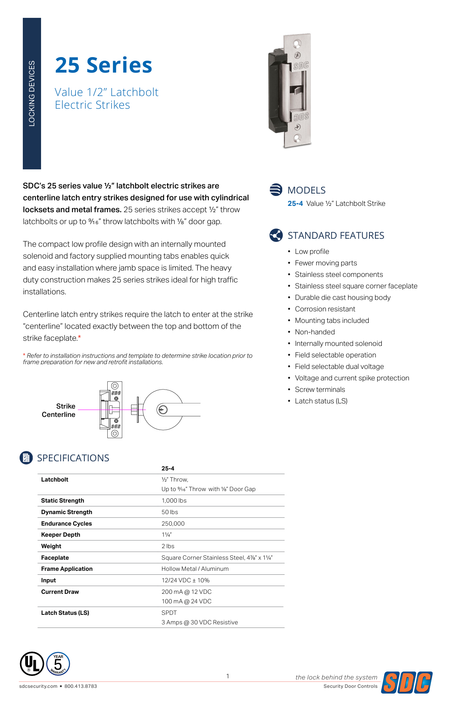

SDC 25-4U Value 1/2" Latchbolt Electric Strike, Satin Stainless Steel Finish

SDC 25-4U Electric Strike, 12/24 VDC, Fail Secure, Field Reversible, 1-1/4" Wide x 4-7/8" High x 1-1/2" Deep, Latch Bolt Monitor Standard

SDC’s 25 series value 1/2” latchbolt electric strikes are centerline latch entry strikes designed for use with cylindrical locksets and metal frames. 25 series strikes accept 1/2” throw latchbolts or up to 9/16” throw latchbolts with 1/8” door gap.

The compact low profile design with an internally mounted solenoid and factory supplied mounting tabs enables quick and easy installation where jamb space is limited. The heavy duty construction makes 25 series strikes ideal for high traffic
installations.

Centerline latch entry strikes require the latch to enter at the strike “centerline” located exactly between the top and bottom of the strike faceplate.

Features
• Low profile
• Fewer moving parts
• Stainless steel components
• Stainless steel square corner faceplate
• Durable die cast housing body
• Corrosion resistant
• Mounting tabs included
• Non-handed
• Internally mounted solenoid
• Field selectable operation
• Field selectable dual voltage
• Voltage and current spike protection
• Screw terminals
• Latch status (LS)

Specifications
Latchbolt: 1/2" Throw, Up to 9/16” Throw with 1/8" Door Gap

Static Strength: 1,000 lbs

Dynamic Strength: 50 lbs

Endurance Cycles: 250,000

Keeper Depth: 1-1/4"

Weight: 2 lbs

Faceplate: 4-7/8" x 11" Square Corner Stainless Steel

Frame Application: Hollow Metal / Aluminum

Input: 12/24 VDC ± 10%

Current Draw
200 mA @ 12VDC
100 mA @ 24VDC

Monitoring Contacts
SPDT
3 Amps @ 30 VDC Resistive

Certifications
UL 1034 Burglary-Resistant Electric Locking Mechanisms
ANSI/BHMA A156.31

Model: SDC 25-4U
