SDC 1591U Single Magnetic Sliding Door Lock, 850lbs Holding Force

SDC 1591U Mortise EMLock for Sliding Doors, 12/24 VDC, 850 lbs. Holding Force

SDC’s 1590 series electromagnetic sliding door locks are compact locks with 850lbs of holding power packed into a small steel mortise case. The lock is ideal for securing sliding or swinging, manual or automatic doors. Its durability for high frequency use and its mortise installation make it the choice of specification writers, owners and architects.

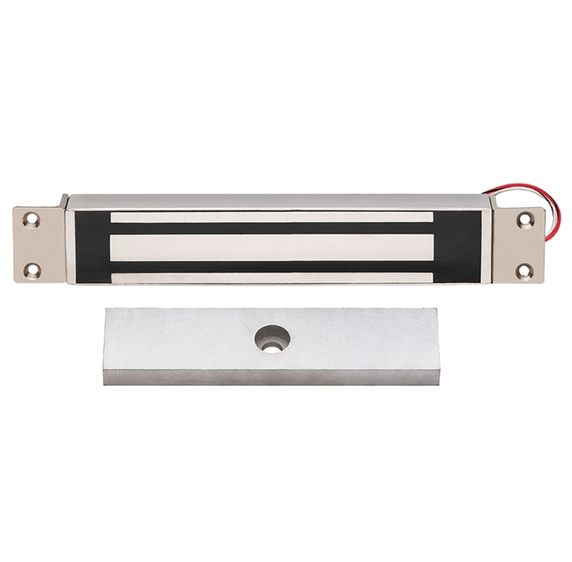

With only two parts, the lock mortised in the frame and the armature in the door, the lock secures the door in a closed position. When power is cut the lock releases instantly.

Features
• Compact mortise stainless steel case
• Field selectable dual voltage
• Voltage and current spike protection

Specifications
Housing: Stainless Steel

Door Type: Sliding

Holding Force: 850 lbs

Dimensions

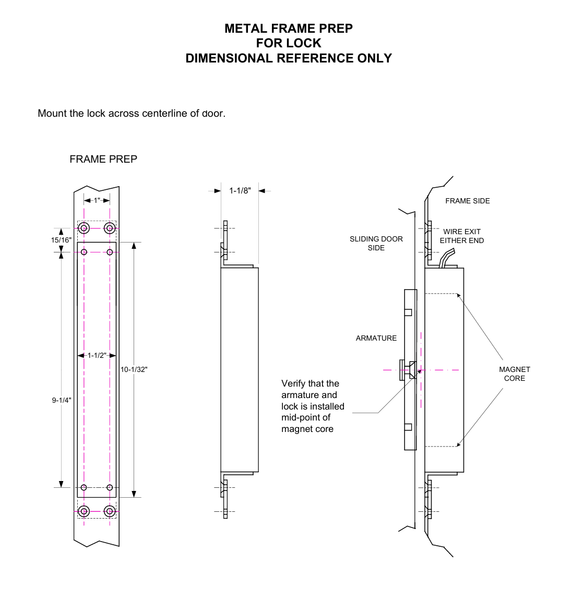

10” x 1-7/16” x 1-1/4” Housing

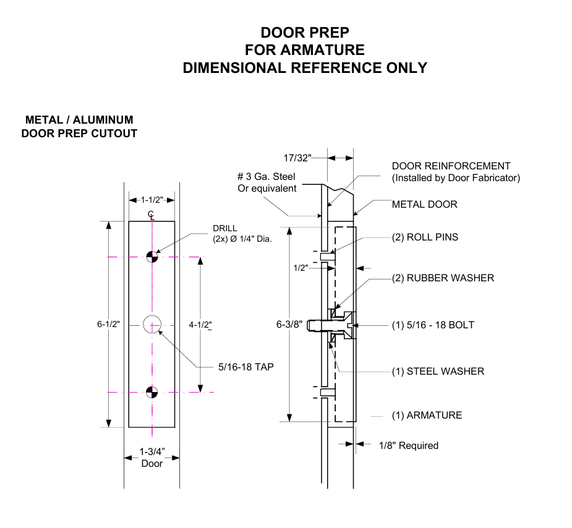

6-5/16” x 1-1/2” x 1/2” Armature

Weight: 5 lbs

Input
12/24 VDC ± 10%
Field Selectable

Current Draw
350 mA @ 24 VDC
700 mA @ 12 VDC

Certifications
UUL 1034 Burglary-Resistant Electric Locking Mechanisms
UL 10B Fire Tests of Door Assemblies
UL 10C Positive Pressure Fire Tests of Door Assemblies
ULC-S104 Standard Method for Fire Tests of Door Assemblies
ULC-S533 Egress Door Securing and Releasing Devices
Uniform Building Code Standard 7-2 Fire Test of Door Assemblies (1997)
ANSI/BHMA A156.23 Grade 1

Model: SDC 1591U
