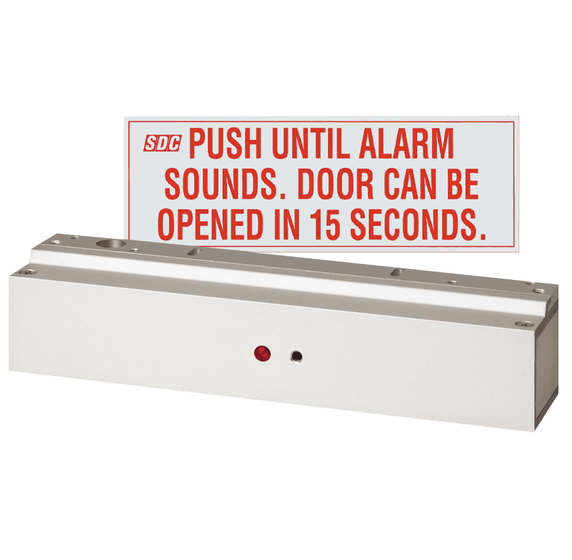

SDC 1581S ExitCheck Mini Delayed Egress EMLock, Satin Aluminum Finish

SDC 1581S ExitCheck Mini Delayed Egress EMLock, 12/24 VDC, 650 lbs. Holding Force, Satin Aluminum

SDC’s 1581S series mini delayed egress locks are designed to meet the needs of long term care and commercial facilities that require a smaller, less obtrusive, and less expensive delayed egress lock that is better suited for minimum security needs. Size matters.

Designed to delay egress through perimeter exit doors for 15 or 30 seconds, alert security and personnel to unauthorized egress, and are compatible with access controls and patient wandering systems.

The 1581S series locks can be utilized in single or double door applications. A remote key switch or access control must be provided to operate the reset and request-to-exit (REX) functions. For double door applications, order two 1581S locks with a tandem cable kit. The tandem cable kit enables slave operation, pushing either door leaf triggers the delayed release of both doors.

Features
• Integrated delayed egress magnetic lock
• Interlocking quick mount assembly
• Subdued alternating alarm
• Built-in activation trigger
• Adjustable door movement sensor
• Low power consumption, energy saver
• Wandering patient, patient and infant tracking system compatible
• Code compliant operation modes
• Auto-sensing dual voltage
• Voltage and current spike protection
• Field selectable activation trigger
• Field selectable door prop alarm activation
• Field selectable alarm reset on REX
• Fixed nuisance time
• Single or multi-door zone control and reset
• Remote reset
• Fire/emergency release
• Anti-tailgate
• 5’ power cable

Application
• Built-in activation for latching doors
• External activation for latching doors
• External activation for non-latching doors
• Auto power-up
• Manual power-up
• Keyless control
• Airport & public facility security & safety
• Loss prevention
• Access control
• Wandering patient and infant protection

Specifications
Housing: Aluminum

Door Opening: Single or Double/Pair

Holding Force: 650 lbs

Dimensions
10” x 2-1/8” x 2-3/8” Housing
8" x 1-3/4” x 7/8” Armature

Weight: 7 lbs

Input
12/24 VDC ± 10%
Auto-sensing

Current Draw
600 mA @ 12VDC
350 mA @ 24VDC

Door Position Status (DPS)
Bond Alert Status (BAS)
SPDT
250 mA @ 30 VDC Resistive

Alarm & Lock Secure Outputs
SPST
1 Amp @ 30 VDC Resistive

Certifications
UL 294 Access Control System Units
UL 10B Fire Tests of Door Assemblies
UL 10C Positive Pressure Fire Tests of Door Assemblies
ULC-S104 Standard Method for Fire Tests of Door Assemblies
ULC-S533 Egress Door Securing and Releasing Devices
NFPA 101 Life Safety Code Special Locking Arrangements
NFPA 1-UFC Uniform Fire Code
UBC Uniform Building Code Standard 7-2 Fire Test of Door Assemblies (1997)
IBC International Building Code Delayed Egress Locks
IFC International Fire Code Delayed Egress Locks
SBC Standard Building Code
CBC, California Building Code Special Egress Control Devices
BOCA National Building Code Special Locking Arrangements
Chicago Building Code Electro-Magnetic Locking Devices
CSFM Listed 3774-0324:0103

Model: SDC 1581SNDV, 1581SNDVD
