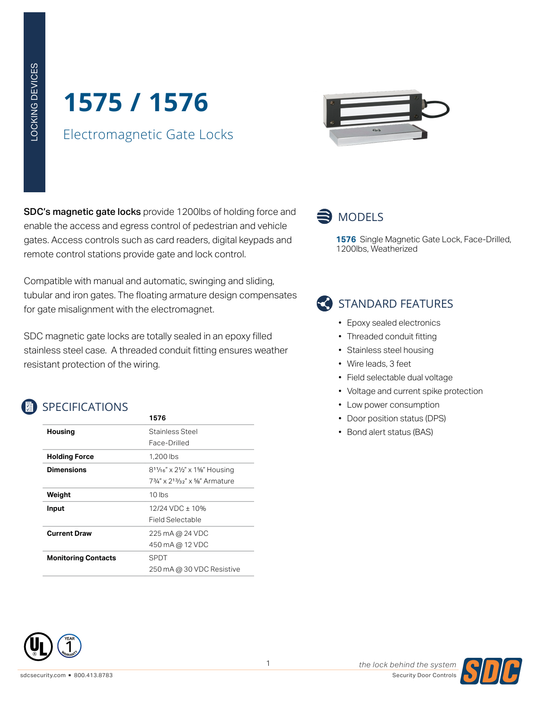

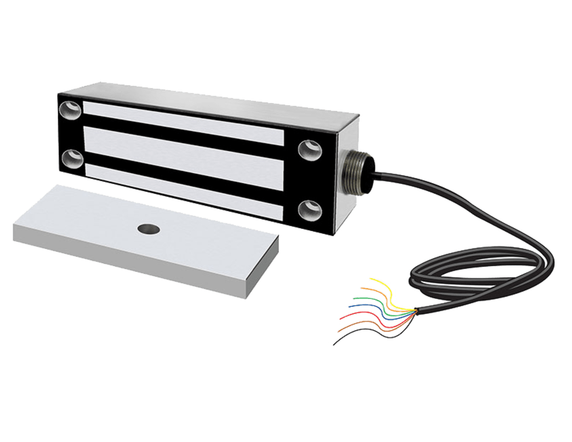

SDC 1576U Single Magnetic Gate Lock, 1200lbs, Face Drilled, Weatherized

SDC 1576U Single Gate EMLock Face Drilled Mounting, Magnetic Bond and Door Status Sensors

SDC’s magnetic gate locks provide 1200lbs of holding force and enable the access and egress control of pedestrian and vehicle gates. Access controls such as card readers, digital keypads and remote control stations provide gate and lock control.

Compatible with manual and automatic, swinging and sliding, tubular and iron gates. The floating armature design compensates for gate misalignment with the electromagnet.

SDC magnetic gate locks are totally sealed in an epoxy filled stainless steel case. A threaded conduit fitting ensures weather resistant protection of the wiring.

Features
• Epoxy sealed electronics
• Threaded conduit fitting
• Stainless steel housing
• Wire leads, 3 feet
• Field selectable dual voltage
• Voltage and current spike protection
• Low power consumption
• Door position status (DPS)
• Bond alert status (BAS

Specifications
Housing: Stainless Steel; Face-Drilled

Holding Force: 1200 lbs

Dimensions
8-11/16” x 2-1/2” x 1-5/8” Housing
7-3/4” x 2-13/32” x 5/8” Armature

Weight: 10 lbs

Input
12/24 VDC ± 10%
Field Selectable

Current Draw
225 mA @ 24 VDC
450 mA @ 12 VDC

Monitoring Contacts
SPDT
250 mA @ 30 VDC Resistive

Certifications
UL 1034 Burglary-Resistant Electric Locking Mechanisms
UL 10B Fire Tests of Door Assemblies
UL 10C Positive Pressure Fire Tests of Door Assemblies
ULC-S104 Standard Method for Fire Tests of Door Assemblies
ULC-S533 Egress Door Securing and Releasing Devices
Uniform Building Code Standard 7-2 Fire Test of Door Assemblies (1997)
ANSI/BHMA A156.23 Grade 1

Model: SDC 1576U
