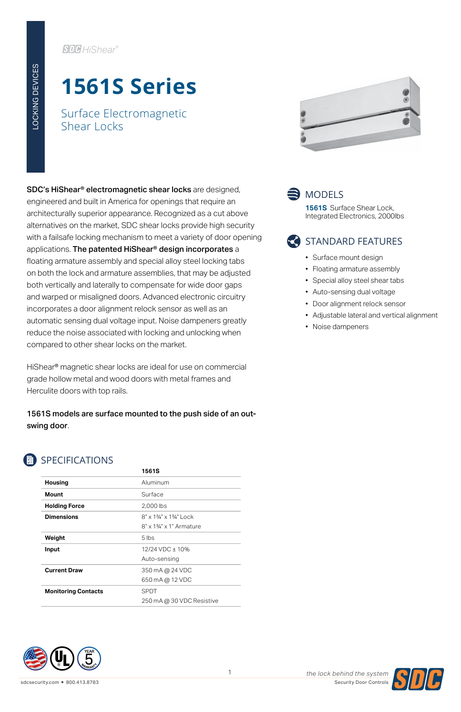

SDC 1561SV Surface Mount Hi/Shear Concealed EMLock for Push Side of the Door, Satin Aluminum Finish

SDC 1561SV Surface Mount Hi/Shear Concealed EMLock, for Push Side of the Door, Satin Aluminum Clear Anodized

Surface Shear Lock, Integrated Electronics, 2000lbs

Features
• Surface mount design
• Floating armature assembly
• Special alloy steel shear tabs
• Auto-sensing dual voltage
• Door alignment relock sensor
• Adjustable lateral and vertical alignment
• Noise dampeners

Application
PUSH SIDE OF AN OUTSWING DOOR
•  For metal door and frame, glass door with top rail and metal frame, or wood door and frame.

Specifications
Housing: Aluminum

Mount: Surface

Holding Force: 2,000 lbs

Dimensions
8” x 1-3/4” x 1-3/4” Lock
8” x 1-3/4” x 1” Armature

Weight: 5 lbs

Input
12/24 VDC ± 10%
Auto-sensing

Current Draw
350 mA @ 24 VDC
650 mA @ 12 VDC

Monitoring Contacts
SPDT
250 mA @ 30 VDC Resistive

Model: SDC 1561SV
